Specification
Voltage DC V
Measuring range;Resolution;Accuracy
0 ... 30V;0.001V;± 0.02% v.Mw. + 2 Dgt
Current DC mA
Measuring range;Resolution;Accuracy
0 ... 24-mA;0.001-mA;± 0.02% v.Mw. + 2 Dgt
Measurement / Simulation
Thermocouples; Measuring range; Resolution; Accuracy
e; -200 ... 1200°C / -328 ... 2192°F; 0.1°C / 0.18°F;
± 0.3°C / 0.54°F
J; -200 ... 1200°C / -328 ... 2192°F; 0.1°C / 0.18°F; ± 0.3°C / 0.54°F
K; -200 ... 1372°C / -328 ... 2501°F; 0.1°C / 0.18°F; ± 0.3°C / 0.54°F
T; -200 ... 400°C / -328 ... 752°F; 0.1°C / 0.18°F; ± 0.3°C / 0.54°F
B; 450 ... 1800°C / 842 ... 3272°F; 0.1°C / 0.18°F; ± 0.3°C / 0.54°F
R; 0 ... 1750°C / 32 ... 3182°F; 0.1°C / 0.18°F; ± 0.3°C / 0.54°F
S; 0 ... 1750°C / 32 ... 3182°F; 0.1°C / 0.18°F; ± 0.3°C / 0.54°F
N; -200 ... 1300°C / -328 ... 2372°F; 0.1°C / 0.18°F; ± 0.3°C / 0.54°F
mV; 10 ... 80 mV; 0.001 mV; ± 0.02% of the displayed value + 2μV
-10 ... 250 mV; 0.01 mV; ± 0.02% of reading + 0.02 mV
General specifications
Display modes:Measurement: mA / V / thermocouple / mV
Simulation: thermocouple / mV
temperature units:°C / °F / K
Cold junction compensation error:≤ ± 0.5°C / 0.9°F
Maximum input voltage:30V DC
Temperature coefficient:<30 ppm
Input impedance measurement:Thermocouple / mV / V:> 1 MΩ
Current measurement: 10 Ω
Response time:<100 ms
Impedance:> 4,7 kΩ with thermocouple / mV
Refresh rate display:10 Hz
Isolation:500V DC
Data storage:Internal memory 150000 readings
Interface:USB 2.0
Display:2.4" TFT LCD ; 240 x 320 pixels
LED illuminated
Output voltage current loop:24V DC / 24mA
HART mA loop resistance:250 Ω ± 20%
Special features:
Step and ramp function; Automatic and manual
mode √x, x2: For the measuring function
Continuity test:Adjustable threshold up to 100 Ω
Power supply:3.7V / 2300mAh Li-ion battery
Charging timeabout 5 h
Power adapter:Input: 100 ... 240V AC / 50/60 Hz ; Output: 5V / 1 A DC
Battery life:Approx. 15 h: Simulation and measurement with low LCD illumination
Approx. 8 h: Measurement with low LCD illumination
Dimensions:162 x 82 x 40 mm
Weight:About 300 g / < 1 lb
Degree of protection:IP20
Operating conditions:Battery operation: 0 ... 55°C / 32 ... 131°F, 30 ... 90% RH Main operation: 0 ... 45°C / 32 ... 113, 30 ... 90% RH
Storage conditions:-20 .. 60°C / -4 ... 140°F, 30 ... 90% rh non-condensing
Heating time:About 15 minutes
Delivery contents

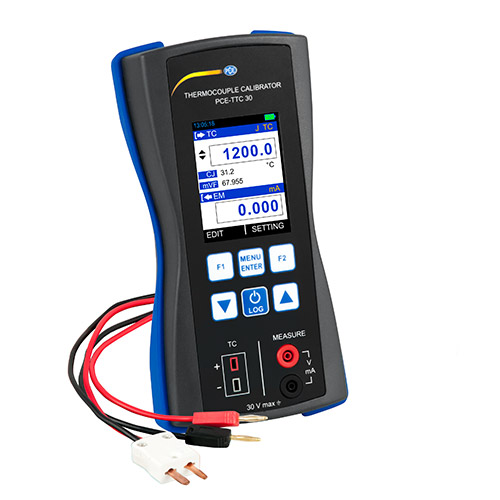

1 x Process Calibrator PCE-TTC 30
2 x Laboratory cables with 2 mm plug
1 x Thermocouple adapter to 2 mm plug
2 x Adapter 2 mm on 4 mm laboratory cable
2 x Alligator clips
1 x Mini USB cable
1 x Power supply 5 V / 1 A
1 x Carrying bag
1 x Software
1 x User manual
