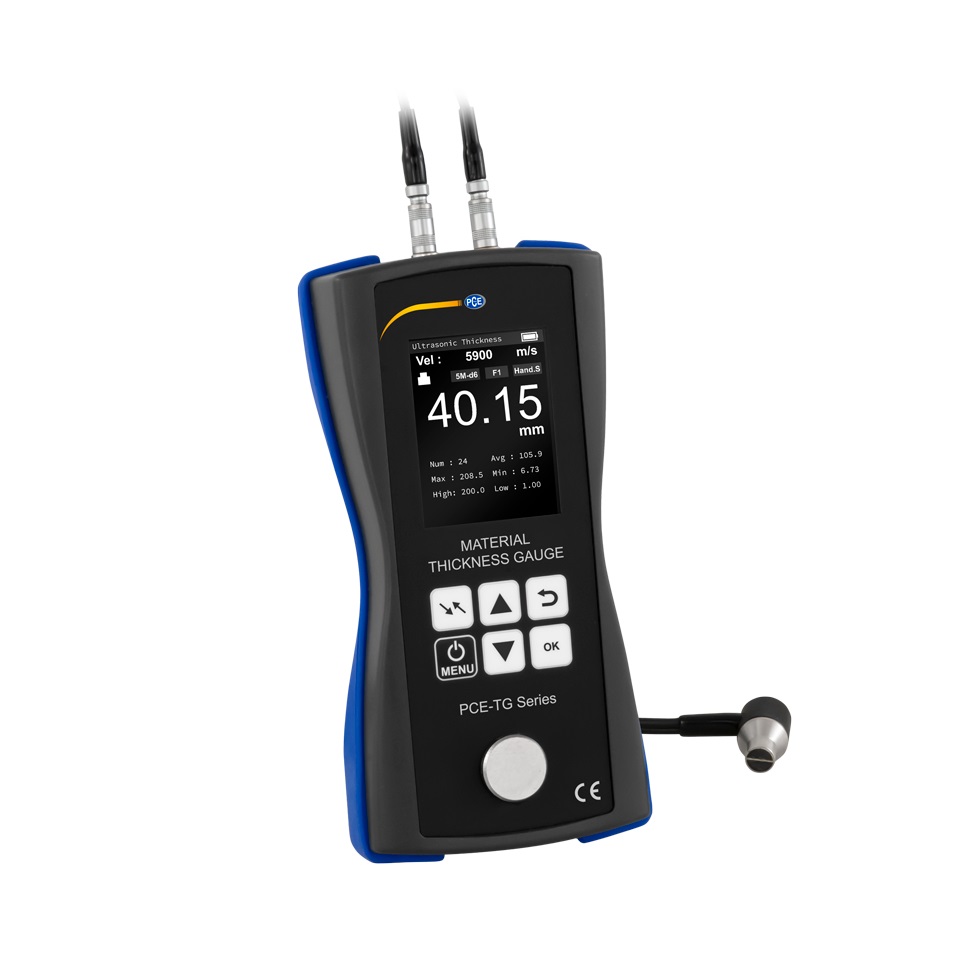

PCE TG 150 HT Thickness Meter (1.20...300.0 mm)

Measuring range: 1.20 ... 300.0 mm / 0.04 ... 11.81"

Resolution:

0.01 mm at ≤99.99 mm

0.1 mm at ≥100.0 mm

Accuracy: ±0.5 % of measured value + 0.05 mm

Storage space: 1500 measured values

Standard sensor: PCE-TG HT

Temperature range sensor: -10 ... 350 °C / 14 ... 662 °F

Probe frequency: 5 MHz

Diameter: Ø12mm

Further specifications

Adjustable speed of sound: 1000 ... 9999 m/s

Smallest pipe diameter: Ø20 x 3 mm (steel)

Material library: 15 memory locations

Calibration reference: 4 mm

Display: 2.4 inch TFT LCD color display with brightness adjustment

Power supply: 3 x 1.5 V AA batteries

Automatic switch-off: switched off, 2, 5, 10, 30 minutes

Ambient conditions: 0 ... 40 °C / 32 ... 104 °F, <90 % RH, non-condensing

Dimensions: 163 x 82 x 38 mm / 6.4 x 3.2 x 1.5"

Weight: 320 g / 11.2 oz

Delivery scope:

1 x Thickness Meter PCE-TG 150 HT

1 x Sensor PCE-TG HT

1 x Coupling gel (TT-GEL)

1 x Transport bag

3 x 1.5 V AA batteries

1 x Quick start guide
