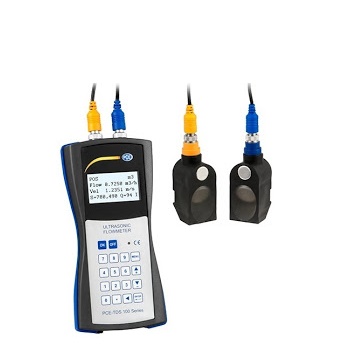

PCE TDS 100HSH Ultrasonic Flow Tester Kit

Specification

Measuring range:-32 ... 32 m/s, -105 ... 105 ft/s

Resolution:0.0001 m/s, 0.00033 ft/s

Accuracy:DN ≥ 50 mm:±1.5 % ,DN < 50 mm: ±3.5 % of measured value

Units:Meters, feet, cubic meters, liters, cubic feet, gallon, oil barrel, liquid barrel, million gallon

Linearity:0.5%

Repeatability:0.2%

Response time:0 ... 999 seconds, freely configurable

Pipe diameter:DN 15 ... 700, 20 … 720 mm / approx. 3/4" ... 28"

Measuring media: Virtually all homogeneous liquids, including sanitary, corrosive and abrasive liquids

Heads:Type M1 and S1

Cable length: Approx. 5 m / 16.4 ft each (x 4)

Display:4 x 16 LCD, 7 digits for net flow, positive and negative flow

Power supply:3 x AAA Ni-H rechargeable batteries

Battery life:Approx. 10 hours continuous use at full charge

Battery charger:100 .. 240V / AC

Interface:RS-232C

Memory:Stores up to 2,000 values

Housing materialABS plastic

Dimensions:

Device: 100 x 66 x 20 mm / 3.93 x 2.60 x 0.79 in

Operating temp.:0 ... 70ºC / 32 ... 158ºF

Weight:514 g / 1.14 lb (with batteries)

Delivery contents

1 x PCE-TDS 100H ultrasonic flow tester

2 x Sensors TDS-M1

2 x Sensors TDS-S1

4 x Velcro-strap clamps

3 x AAA Ni-H rechargeable batteries

1 x Battery charger

1 x Container of coupling gel

1 x Measuring tape

1 x Carrying case

1 x User manual
