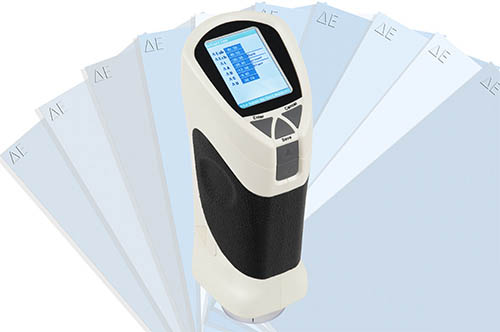

PCE TCR 200 Color Meter

Specifications

Repeatability: 0.08

Illumination System: 8/d, SCI

Light source: standard white light

Detection angle: 10º according to CIE standard

Detection conditions: D65, D50, F11

Balancing of measured values: standard white according to CIE, standard black according to CIE

Memory: 12 groups with 30 values each

Display:

L*a*b*, L*c*h*, E*ab, RGB

chromatic aberration of L*a*b* and L*c*h*

Diameter: 8 mm

Voltage Supply: 4 x AA 1.5 V, external 5 V power plug

OS Comaptibility: Windows XP, Windows Vista, Windows 7

Dimentions: 60 x 110 x 40 mm / 2.3 x 4.3 x 1.5 in

Dilivery Contents

1 x Color device PCE-TCR 200

1 x Standard white object

1 x Standard black object

4 x 1.5 AA batteries

1 x 5 V power plug

1 x USB cable

1 x Software

1 x Manual description
