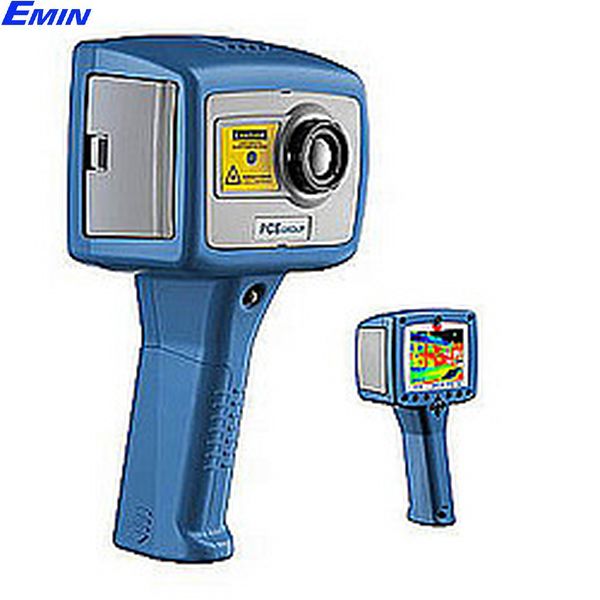

PCE-TC 3VG Thermal Camera (-10~250°C)

Temperature range: -10 to 250°C
Sensor: uncooled focal plane array

Measurement points / Resolution: 160 x 120 pixels (19,200 points)

Accuracy: ±2°C or ±2%

Display resolution: 192 x 192 pixels

Lens :(FOV) 20° x 15°

Focus: manual

Measurement distance: 30cm to infinity

Measurement functions two moveable points, measures difference

Temperature resolution: 0.15ºC

Image frequency: 7.5 Hz

Spectral range: 8 to 14µm

Emissivity: 0.2 to 1.0 (adjustable in steps of 0.01)

Memory: MMC or SD memory card

Port: USB type B

Display: 3.5" LCD, with back lighting and four adjustable colour palettes: rainbow, iron bow, hc rainbow and grey scale

Temperature units: ºC, ºF or K

Laser pointer:class II 1mW / 635nm

Operating temperature: -15 to 45ºC

Storage temperature: -20 to 70ºC

Air humidity: 10 to 90% r.h. without condensation

Power: ion-litium rechargeable

Operating time: 4 to 6 hours

Enclosure plastic Tripod screw: 1/4"

Weight: 750gr

Dimensions: 230 x 120 x 110mm

Manufacturer:PCE-ENGLISH
Origin:UK

Discontinued
