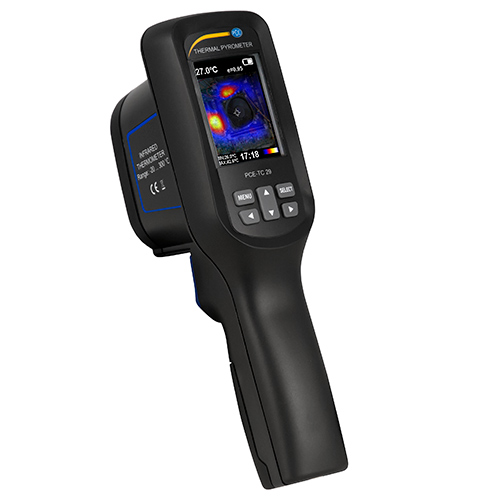

PCE TC 29 Infrared Thermometer (-20℃~300°C)

Specification

Display: 2.5" TFT color LCD screen

IR resolution:60 x 60 pixels

Color camera resolution:300,000 pixels

FOV:20 x 20°

Thermal sensitivity:0.15°C / 0.27°F

Temperature measuring range temperature:-20 ... 300°C / -4 ... 572°F

Temperature measurement accuracy:± 2% or ± 2°C / 3.6°F

Emissivity:Adjustable from 0.1 ... 1.0

Image acquisition frequency:6 Hz

Infrared spectral band:8 ... 14 μm

Mechanism of focus:Fixed focus

Color palettes:Iron, rainbow, rainbow (strong contrast), grey, grey-inverted

Picture-in-picture overlay increments:0 / 25 / 50 / 75 / 100%

File format:.bmp

Data storage:MicroSD card memory

Power-saving automatic shutdown:Yes, after 12 minutes of inactivity

Operating temperature:-50 ... 40°C / -58 ... 104°F

Storage temperature:-20 ... 55°C / -4 ... 131°F

Operating and storage relative humidity (RH):10 ... 80% RH

Standard compliance:EN 61326-1: 2006

Overflow indication:High

Power supply:4 x AA batteries

Battery life:Approximately 6 hours of continuous use at full charge

Dimensions:223 x 88 x 65 mm / 8.78 x 3.47 x 2.56 in

Weight:310 g / < 1 lb

Delivery contents

1 x PCE-TC 29 IR HVAC meter

1 x Micro SD card

4 x AA batteries

1 x User manual

1 x Soft carrying case
