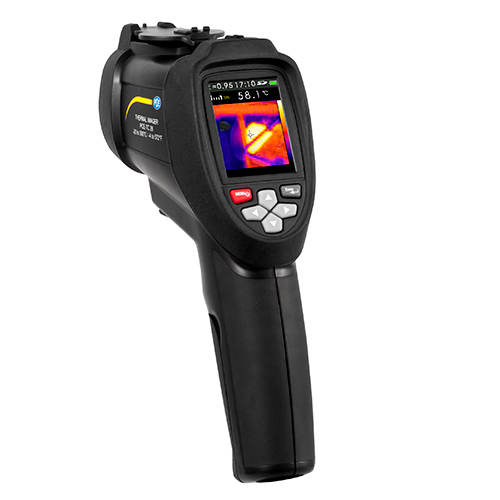

PCE TC 28 Infrared camera (-20°C~300°C; ±2%)

Specification

Temperature

Measurement range: -20 ... 300°C / -4 ... 572°F

Accuracy: ±2 %, ±2°C

Emissivity correction on screen: Yes

Setting of background temperature: Yes


Frequency image recording: 9 Hz

Type of detector: Uncooled pyroelectric ceramics

Thermal sensitivity: ≤150 mK

Infrared spectral band: 6.5 ... 14 µm

Camera: 48608 Pixel

Field of view: 38 x 38°

Mechanism of focus: Fixed focus

Parallax correction of visual and IR image: 0.5 m / 19.7 in, 1.0 m / 39.4 in, 2.0 m / 78.7 in, 3.0 m / 118.1 in

Picture-in-picture coverage of visual and IR image: 0 / 25 / 50 / 75 / 100%

Hot / cold spot localisation: Yes

Image recording and data storage

Image recording: Image can be viewed before saving

Storage medium: MicroSD card can save 6000 images per GB

File format: .bmp

Memory view: Possibility to scroll through all saved images

Operating temperature: 0 ... 50°C / 32 ... 122°F

Storage temperature: -20 ... 60°C / -4 ... 140°F

Relative air humidity: 10 ... 90%, non-condensing

Display: 2.2" diagonal, (320 x 240 TFT LCD)

Delivery contents

1 x IR HVAC Meter PCE-TC 28

1 x Rechargeable Li-Ion battery

1 x USB data cable

1 x Mini tripod

1 x Mains adapter

1 x Carrying case

1 x User manual
