Specification
Breakout force:200 kg
Diameter of base dolly, mm:15.1 (№ 1) and 19.5 (№ 2)
Specific breakout force, MPa:Dolly №1 up to 10 MPa (100); Dolly №2 up to 6 MPa (60)
Scale, MPa:1 (№ 1) and 2 (№ 2)
Weight of adhesion tester, kg, no more1
Dimensions of adhesion tester, mm:150×70
Dimensions of package, mm:L180*W150*H100
Dilivery Contents

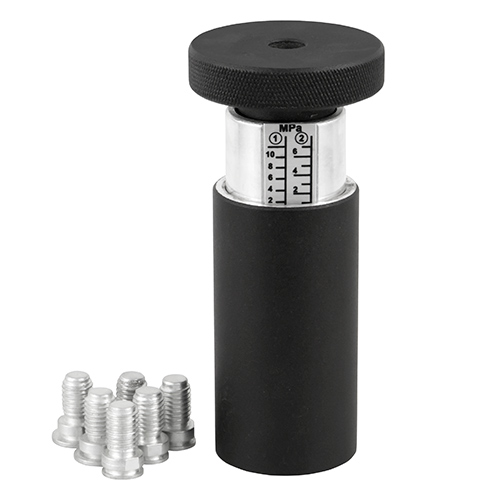

1 x Adhesion tester PCE-TAT 10
1 x Dollies: № 1 – 3 pcs., № 2 – 3 pcs.
1 x Ballerina (cutter) for cutting the area of testing
1 x Two-component epoxy adhesive
1 x CA glue
1 x Operating manual
1 x Case
