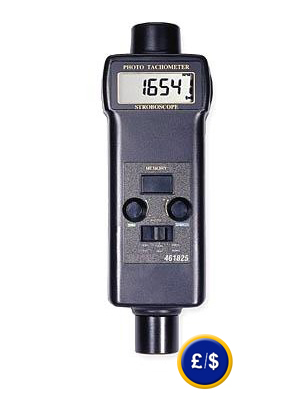

PCE T259 Tachometer and Stroboscope

Measurement range

5 to 99,999 rpm (optical)

100 to 100,000 FpM (stroboscope - flash/min)

Resolution

0.5 to 999.9 = 0.1 rpm;

up to 99,999 = 1.0 rpm (optical)

0.1 FpM - rpm (for <1,000 FpM - rpm) (stroboscope)

1.0 FpM - rpm (for >1,000 FpM - rpm) (stroboscope)

Accuracy±0.1% of reading; ±2 positions

Maximum distance for optical measurements100mm

Strobe lightorange

Durationapprox. 16% of the duration

Adjustmentfine and normal by pressing a button

Memorylast, maximum and minimum values

Power4 AA batteries

Operating temperature0 to 50°C

EnclosureABS plastic

Display5 digit LCD

Dimensions65 x 215 x 38mm

Weight300g

Delivery Scope

PCE-T259 tachometer and stroboscope

reflective tape (60mm)

carrying case

user's manual

Datasheet
