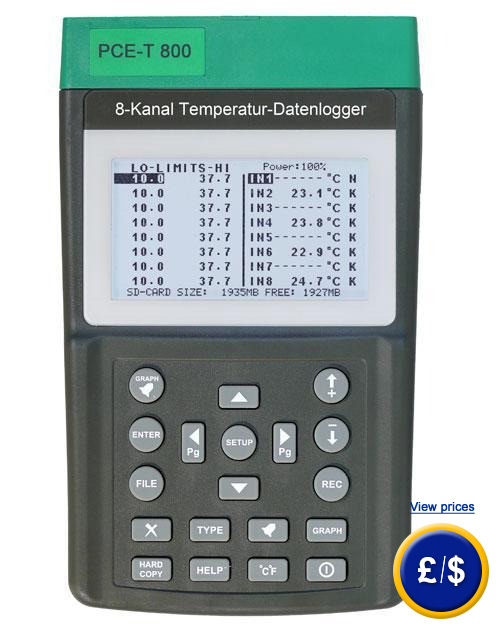

PCE T 800 Data Logger (8 CH)

DTechnical specifications:

Measurement of temperature ºC Type K

Measurement range

-200 ... -150 ºC

-150 ... -100 ºC

-100 ... 999.9 ºC

1,000 ... 1370 ºC

Accuracy

±3.0 ºC

±2.0 ºC

±0.05 % / ±1.0 ºC

±0.2 % / ±1.0 ºC

Measurement of temperature ºC

Type J

Measurement range

-200 ... -100 ºC

-100 ... 100 ºC

100... 760 ºC

Accuracy

±2.5 ºC

±1.5 ºC

±0.05 % / ±1.0 ºC

Measurement of temperature ºC

Type E

Measurement range

-150 ... -100 ºC

100 ... 760 ºC

Accuracy

±2.0 ºC

±0.05 % / ±1.0 ºC

Measurement of temperature ºC

Type T

Measurement range

-200 ... -150 ºC

-150 ... -100 ºC

-100 ... 400 ºC

Accuracy

±3.0 ºC

±0.1 % / ±1.5 ºC

±0.1 % / ±1.5 ºC

Measurement of temperature ºC

Type R/S

Measurement range

0 ... 100 ºC

100 ... 300 ºC

300 ... 999,9 ºC

1,000 ... 1,600 ºC

Accuracy

±5.0 ºC

±3.0 ºC

±0.05 % / ±2.0 ºC

±0.1 % / ±2.0 ºC

Measurement of temperature ºC

Type N

Measurement range

0 ... 999,9 ºC

1,000 ... 1,300 ºC

Accuracy

±0.1 % / ±1.0 ºC

±0.2 % / ±1.0 ºC

Measurement of temperature ºC

Type L

Measurement range

-200 ... 900 ºC

Accuracy

±0.1 % / ±1.0 ºC

Measurement of temperature ºC

Type U

Measurement range

0 ... 600 ºC

Accuracy

±0.1 % / ±1.0 ºC

Measurement of temperature ºC

Type B

Measurement range

600 ... 999.9 ºC

1,000 ... 1,760 ºC

Accuracy

±0.05 % / ±2.0 ºC

±0.1 % / ±2.0 ºC

Measurement of temperature ºC

Type C

Measurement range

0 ... 999.9 ºC

1,000 ... 1760 ºC

Accuracy

±0.1 % / ±1.5 ºC

±0.2 % / ±1.5 ºC

mV

Measurement range

-60 mV ... 60 mV

Accuracy

±60 µV

Display4.5" STN LCD (240 X 128 pixels )

Power

Batteries: 8 x 1.5 V AA

DC 12 V mains component/ 300 mA output

AC 110 V / 220 V input

Current consumption

100 mA (with backlight)

70 mA (without backlight)

Dimensions257 x 155 x 57 mm

Delivery content:

1 x PCE-T 300

1 x battery

1 x user manual

Datasheet
