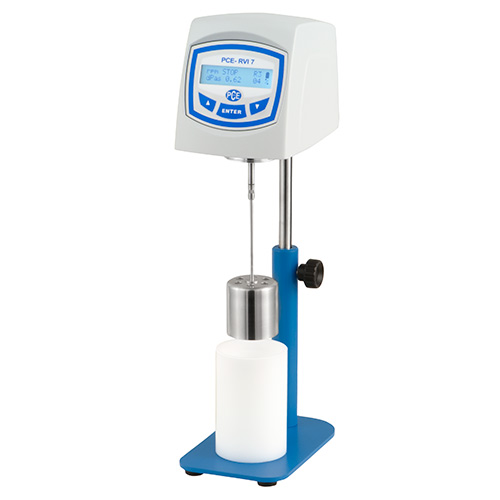

PCE RVI 7 Viscosity Meter

Specification

Rotational speed: 62.5 rpm

Torque range: Rotational viscometer (RV)

Viscosity range

Millipascal-second (mPa.s) / equivalent to centipoise (cP):

R3 = 30 ... 13,000 mPa.s; R1 = 300 ... 15,000 mPa.s; R2 = 10,000 - 400,000 ... mPa.s

Decipascal-second (dPa.s):

R3 = 0.3 ... 13 dPa.s; R1 = 3 ... 150 dPa.s; R2 = 100 ... 4000 dPa.s

Accuracy:± 2% full scale (FS)

Repeatability:± 1%

Power supply:4 x AA LR6 or R6 batteries (6 V)

Battery life:Up to 30 hours of continuous operation

Operating temperature:+10 ... +40 ° C / +50 … 104 ° F

Relative humidity:< 80%, non-condensing

Maximum altitude:2,000 m / 6,561 ft above mean sea level

Approx. dimensions:170 x 110 x 410 mm / 6.7 x 4.3 x 16.1 in

Approx. weight:1.8 kg / 4.0 lbs

Protection class:IP20

Delivery contents

1 x PCE-RVI 7 VP60 viscometer / viscosity meter

1 x Set of x 3 spindles: R1, R2 and R3

1 x Spindle protector

1 x Measuring vessel (no. 3; 170 ml / 5.75 oz capacity)

4 x AA batteries

1 x Manufacturer calibration certificate

1 x Carrying case

1 x User manual
