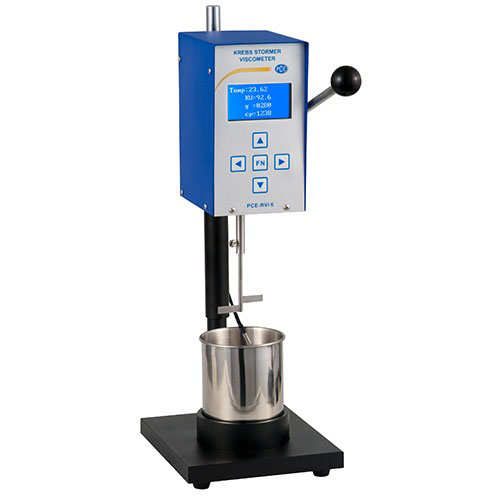

PCE RVI 6 Krebs Stormer Viscometer (200 rpm, 27 ~ 5,250 cP, ± 1.5%)

Specification

Rotational speed: 200 rpm

Torque range: Rotational viscometer (RV)

Viscosity range

Krebs Units (KU): 40.2 … 141.0 KU

Grams (g):32 … 1,099 g

Centipoise (cP):27 … 5,274 cP (= mPa.s)

Resolution

Krebs Units (KU): 0.1 KU

Grams (g):1.0 g

Centipoise (cP):5 cP

Accuracy:± 1.5% full scale (FS)

Repeatability:± 1.0% FS

Strokeapprox.: 90 mm / 3.5 in

Operating conditions:+25 ° C (± 2 ° C) / +77 ° F (± 35.6 ° F)

Approx. dimensions:360 x 280 x 730 mm / 14.2 x 11.1 x 28.8 in

Approx. weight:10.0 kg / 22.1 lbs

Power supply:110 ... 220 V / 50 ... 60 Hz

Standards:ASTM D562, ASTM D1131, ASTM D856

Delivery contents

1 x PCE-RVI 6 viscometer / viscosity meter with base

1 x Krebs spindle

1 x Stainless steel measuring cup (approx. 800 ml)

2 x Adapter stands

1 x Power cable

1 x Manufacturer calibration certificate

1 x User manual
