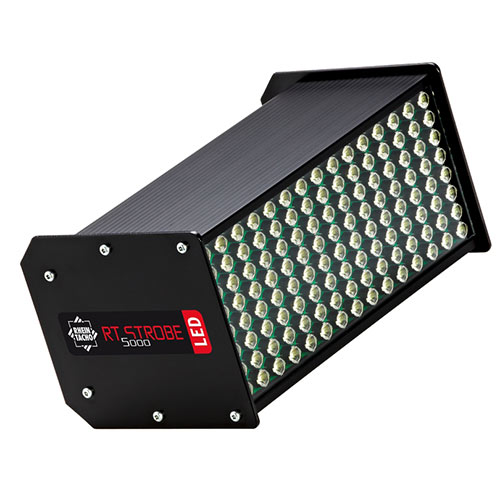

RT STROBE 5000 LED Stroboscope (0~120,000 FPM)

Manufacturer: PCE-ANH

Model : RT STROBE 5000 LED

Warranty : 12 months

Specification

General parameter

Frequency range:0…120,000 FPM (flashes per minute)

Voltage supply:15...28V DC/ 60W

External triggerinput:3...30 V / max. 5 mA

(potential freeOptokoppler)

DIN 41524 5pin Standardstecker

Uout = Uin, max. 200 mA

Trigger input switchable

Triggeroutput:for parallel circuit

Flash Parameter

Flash period:< 10 μs.

Luminous intensity:standard, 30 – 100%

Light intensity:single flash ca. 20 Mega-Lux / 30 cm / 12"

Mean:ca. 7,500 Lux / 30 cm / 12” (@ 6.000 FPM)

Flash energy:2.000mJ (@ ≤ 1.000 FPM)

Light colour:6000...6.500K

Case

Material:Aluminium

Diameter:224 x 130 x 112 mm / 8.8 x 5.1 x 4.4˝

Weight:2,100 g

Ambient conditions

Ambient temperature:0...40 °C (32...104 °F)

Storage temperature:-25...70 °C (-13...158 °F)

Humidity:Max. 95 %, non-condensing

Delivery contents

1x RT STROBE 5000 LED

1x mains adapter

1x manual

1x plug for triggerinput and supply
