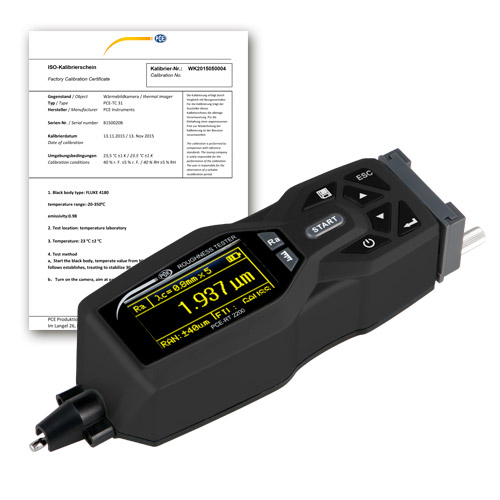

PCE RT 2200-ICA Roughness Tester

Specification

Measured parameters:Ra, Rz, Rq, Rx, Rt, Rp, Rv, R3z, R3y, RzJIS, Rsk, Rku, Rsm, Rmr

Measuring rangeRa: 0.005 ... 16 µm; Rz: 0.02 ... 160 µm

Sampling length/cutoff wavelength lr = λc:0.25 / 0.8 / 2.5 mm

Total scanning distance:1 ... 5 mm

Stylus:Touch diamond with 5 μm tip radius

Filters:RC, PCRC, Gauss, ISO13565

Display:LCD 128 x 64 Dot matrix

Interface:USB

Internal memory:Stores up to 100 data sets

Power supply:Rechargeable Li-Ion battery

Dimensions:141 x 55 x 40 mm / 5.55 x 2.17 x 1.57 in

Weight:400 g / 0.88 lbs

Delivery contents

1 x PCE-RT 2200-ICA roughness tester

1 x micro switch

1 x roughness standard

1 x charger

1 x USB cable

1 x sensor cap

1 x screwdriver

1 x adjustable support

1 x user manual

1 x carrying case

1 x ISO calibration certificate
