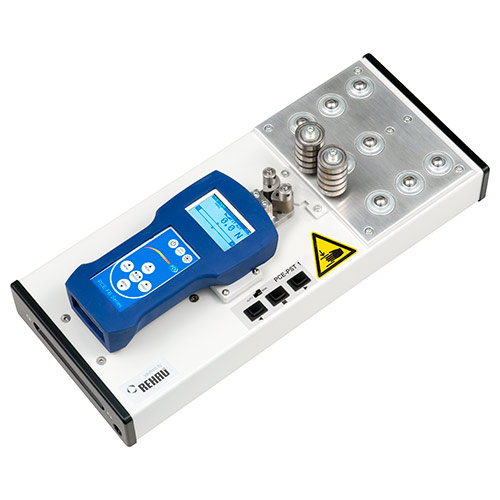

PCE PST 1 Dynamometer for Peel Tests

Specification

Measuring range:500 N / 50 kg / 110 lbs

Measurable edge thickness:0.4 mm ... 3.5 mm; 0.02 in ... 0.14 in

Measurable plate thicknesses:10 mm ... 64 mm; 0.4 in ... 2.5 in

Travel speed:0.3 m/min / 11.8 in/min

Traverse:100 mm / 3.9 in

Measurement accuracy:± 0.1 % of the measuring range

Resolution:0.1 N / 0.010 kg / 0.02 lbs

Max. overload:± 20 %

Display:Graphic display with backlight: 61 mm x 34 mm / 2.4 in x 1.3 in

Operating modesmanual / automatic: InterfaceUSB

Environmental conditions:-10 °C ... +40 °C / 14 °F ... 104 °F

Weight:ca. 9 kg / 19.8 lbs

Power supply:~230 V / 12V; 1.2 A

Dimensions (LxWxH):490 mm x 210 mm x 150 mm; 19.3 in x 8.3 in x 5.9 in

Delivery contents

1 x PCE-PST 1 Dynamometer

2 x power supply

1 x carrying case

1 x USB cable

1 x software

1 x user manual
