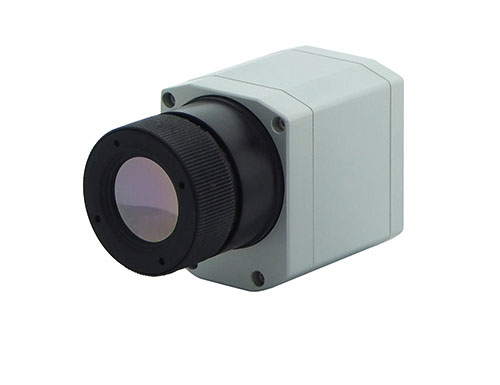

PCE PI 450 Infrared Thermometer

Specification

Detector:FPA, uncooled (25 x 25 µm)

Optic resolution:382 x 288 pixels

Spectral range:7.5 ... 13 µm

Temperature range:-20 ... +100 °C, 0 ... +250 °C, +150 ... +900 °C

additional range: +200 ... +1500 °C (not available for optival 72 ° HFOV )

Image frequency:80 Hz

Optics (FOV):

38 ° x 29 ° FOV / f = 15 mm, max. +900 °C or

62 ° x 49 ° FOV / f = 8 mm ,max. +900 °C or

13 ° x 10 ° FOV / f = 41 mm, max. +900 °C or

38 ° x 29 ° FOV / f = 15 mm, max. +1.500 °C or

62 ° x 49 ° FOV / f = 8 mm, max. +1.500 °C or

13 ° x 10 ° FOV / f = 41 mm, max. +1.500 °C

Thermal sensitivity (NETD):

PI450:

0,04 K with 38 ° x 29 ° FOV / F = 0,8

0,04 K with 62 ° x 49 ° FOV / F = 0,8

0,06 K with 13 ° x 10 ° FOV / F = 1,0

Accuracy:± 2 °C or ± 2 %

Interface:USB 2.0

Process interface (PIF):0 ... 10 V input, digital input,

0 ... 10 V output

Surrounding temperature:PI450: 0 ... +70 °C

Storage temperature:PI450: -40 ... +85 °C

Relative humidity:20 ... 80 % r.H., non condensing

Dimensions enclosure:46 x 56 x 90 mm

Protection category enclosure:IP 67 (NEMA 4)

Weight:320 g, incl. object

Shock / vibration:25G, IEC 68-2-29 / 2G, IEC 68-2-6

Input for stand:1/4-20 UNC

Power Supply:via. USB

Delivery contents

1 x infrared camera PCE- PI 450 with objective

1 x USB cable (1m)

1 x table stand

1 x PIF cable with connected terminal block (1 m)

1 x software package PCE-PI Connect

1 x aluminum case

1 x instruction manual
