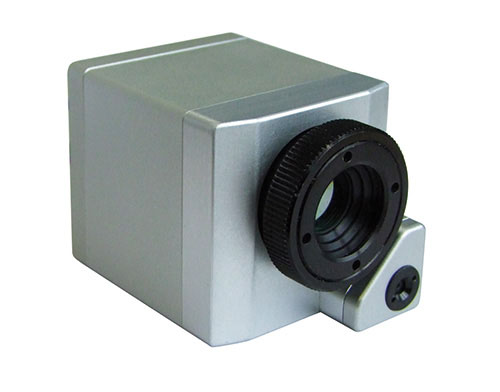

PCE PI 230 Infrared Thermometer

Specification

Detector:FPA, uncooled (25 x 25 µm)

Optic resolution:160 x 120 pixels

Spectral range:7.5 ... 13 µm

Temperature range:-20 ... +100 °C, 0 ... +250 °C, +150 ... +900 °C

additional range: +200 ... +1500 °C (not available for optival 72 ° HFOV )

Image frequency128 Hz

Optics (FOV):

23 ° x 17 ° FOV / f = 10 mm, max. +900 °C or

41 ° x 31 ° FOV / f = 5.7 mm ,max. +900 °C or

6 ° x 5 ° FOV / f = 35.5 mm, max. +900 °C or

72 ° x 52 ° FOV / f = 3.3 mm, max. +900 °C or

23 ° x 17 ° FOV / f = 10 mm, max. +1.500 °C or

41 ° x 31 ° FOV / f = 5.7 mm, max. +1.500 °C

6 ° x 5 ° FOV / f = 35.5 mm, max. +1.500 °C

72 ° x 52 ° FOV / f = 3.3 mm, max. +1.500 °C

Thermal sensitivity (NETD):

0,08 K with 23° x 17° FOV / F = 0,8

0,3 K with 6° x 5° FOV / F = 1,6

0,1 K with 41° x 31° FOV and 72° x 52° FOV /

F = 1

Optional visual camera:

Optic resolution: 640 x 480 pixels

Image frequency: 32 Hz

Optic (FOV) PI230: 30 ° x 23 °

System accuracy:± 2 °C or ± 2 %

Interface: USB 2.0

Process interface (PIF):0 ... 10 V input, digital input,

0 ... 10 V output

Surrounding temperature:0 ... +50 °C

Storage temperature:-40 ... +70 °C

Relative humidity:20 ... 80 % r.H., non condensing

Dimensions enclosure:45 x 45 x 62 mm

Protection category enclosure:IP 67 (NEMA 4)

Weight:215 g, incl. object

Shock / vibration:25G, IEC 68-2-29 / 2G, IEC 68-2-6

Input for stand:1/4-20 UNC

Power Supply:via. USB

Delivery contents

1 x infrared camera PCE-PI 230 with objective and BI-SPECTRAL technology

1 x USB cable (1m)

1 x table stand

1 x PIF cable with connected terminal block (1 m)

1 x software package PCE-PI Connect

1 x aluminum case

1 x instruction manual
