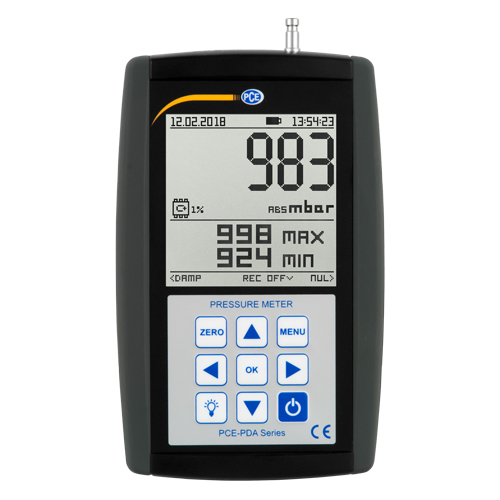

PCE PDA A100L Pressure Gauge (0~200 kPa, < ± 0.5%)

Specification

Measuring range pressure:0 ... 200 kPa absolute

Resolution:0.01 kPa, 0.1 kPa

Accuracy:<± 0.5% of the measuring range

Nominal pressure:200 kPa

Overpressure:200 kPa

Burst pressure:300 kPa

Measuring rate:10 Hz

Measurement units:Pa, hPa, kPa, MPa, mbar, bar, ATM, kg / cm², mmH2O, cmH2O, inH2O, mmHg, inHg, Torr, PSI, PSF

Pressure:Absolute pressure

Pressure connections:5 mm nipple for quick connectors

Max, Min and Hold function:Yes

Data logger:1024 memory slots

1 s ... 255 h Recording time per memory location

1 s ... 24h recording interval

Medium:For air and non-explosive gasses

Zero correction:Yes, with a zero key

Averaging:Yes, between 0.1 ... 9.9 s

Display:Graphic LCD with backlight

Protection:IP41

Power supply:2 x 1.5V AA battery / 1.2V NiMh battery

5V / 500-mA USB power adapter

Current consumption:50-mA (with backlight); 10-mA (without backlight)

Operating temperature:0 ... 50°C / 32 ... 122°F

Storage temperature:10 ... 55°C / 50 ... 131°F

Dimensions:145 x 85 x 35 mm / 5.7 x 3.3 x 1.4 in

Weight:About 285 g / < 1 lb

Delivery contents

1 x HVAC meter PCE-PDA A100L

2 x 1.2V AA NiMh batteries

1 x USB power adapter

1 x Micro USB cable

1 x User manual

Manual
