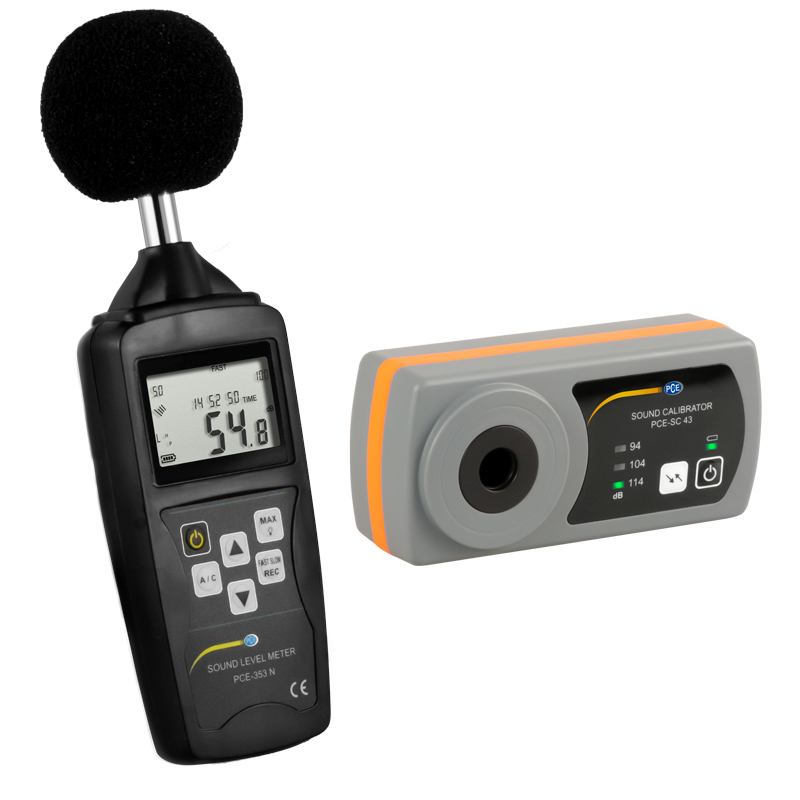

PCE PCE-353N-SC43 Decibel Meter (30 ~130 dBA, 35 ~130 dBC)

Measuring range

30 ... 130 dBA

35 ... 130 dBC

Accuracy: ± 1.5 dB (at 1 KHz and 94 dB), class 2

Resolution digital display: 0.1 dB

Resolution bar graph: 1 dB

Frequency weighting: A and C

Manual measuring range: 30 ... 80 dB

50 ... 100 dB

60 ... 110 dB

80 ... 130 dB

Dynamic display area: 50 dB

Display outside the measuring range

"Over" when the measuring range is exceeded

"Under" if the measuring range is not reached

Measurement functions: Lp, LAeq, LAe, LCpeak

Data storage: 10 measured values

DC output: 0 ... 2.5V, 25 mV / dB

Output resistance: 600 Ω

Time evaluationFast (125 ms)

Slow (1 s)

Frequency range: 31.5 Hz ... 8 kHz

Power supply battery: 9V block battery

Power supply: power pack 9V DC, 100-mA

Sound sensor

1/2" polarized condenser microphone

DisplayLC display, 4 digits

Operating conditions: 0 ... 40°C / 32 ... 104°F, < 80% RH

Working height: < 2000 m / 6561 ft

Dimensions: 200 x 72 x 35 mm / 7.9 x 2.8 x 1.4 in

Weight: Approx. 290 g / 10.2 oz

Standard: IEC 61672-1: 2002 (Class II),

JJG 188-2002

Delivery scope:

1 x LEQ - Decibel Meter PCE-353N-SC43

1 x Connection cable for DC output

1 x Windshield

1 x 9V block battery

1 x Transport bag

1 x Instruction manual

1 x Class II sound calibrator PCE-SC 43
