PCE PA 8000-ICA Power Analyzer (10~600 ACV, 0.2~1200 ACA)

Specification

Voltage (ACV)

Measurement range;Resolution;Accuracy

10 V ... 600 V (phase to neutral);0.1 V;±(0.5 % + 0.5 V)

10 V ... 600 V (phase to neutral)

Current (ACA)

Measurement range;Resolution;Accuracy

20 A;0.001 A (< 10 A),0.01 A (≥ 10 A);±(0.5 % + 0.1 V)

200 A;0.01 A (< 100 A),0.1 A (≥ 100 A);±(0.5 % + 0.5 A)

1200 A;0.1 A (< 1000 A), 1 A (≥ 1000 A);±(0.5 A + 5 A)

Active power

Measurement range;ResolutionAccuracy

0 KW ... 9.999 KW;0.001 KW;±(1 % + 0.008 KW)

10 KW ... 99.99 KW;0.01 KW; ±(1 % + 0.008 KW)

100 KW ... 999.9 KW;0.1 KW; ±(1 % + 0.8 KW)

1 MW ... 9.999 MW;0.001 MW;±(1 % + 0.008 MW)

Apparent power

Measurement range;Resolution;Accuracy

0 KVA ... 9.999 KVA;0.001 KVA;±(1 % + 0.008 KVA)

10 KVA ... 99.99 KVA;0.01 KVA;±(1 % + 0.08 KVA)

100 KVA ... 999.9 KVA;0.1 KVA;±(1 % + 0.8 KVA)

1 MVA ... 9.999 MVA;0.001 MVA;±(1 % + 0.008 MVA)

Reactive power

Measurement range;Resolution;Accuracy

0 KVAR ... 9.999 KVAR;0.001 KVAR;±(1 % + 0.008 KVAR)

10 KVAR ... 99.99 KVAR;0.01 KVAR;±(1 % + 0.08 KVAR)

100 KVAR ... 999.9 KVAR;0.1 KVAR;±(1 % + 0.8 KVAR)

1 MVAR ... 9.999 MVAR;0.001 MVAR±(1 % + 0.008 MVAR)

Active energy

Measurement range;Resolution;Accuracy

0 KWh ... 9.999 KWh;0.001 KWh;±(1 % + 0.008 KWh)

10 KWh ... 99.99 KWh;0.01 KWh;±(1 % + 0.08 KWh)

100 KWh ... 999.9 KWh;0.1 KWh;±(1 % + 0.8 KWh)

1 MWh... 9.999 MWh;0.001 MWh;±(1 % + 0.008 MWh)

Apparent energy

Measurement range;ResolutionAccuracy

0 KVAh ... 9.999 KVAh;0.001 KVAh;±(2 % + 0.008 KVAh)

10 KVAh ... 99.99 KVAh;0.01 KVAh;±(2 % + 0.08 KVAh)

100 KVAh ... 999.9 KVAh;0.1 KVAh;±(2 % + 0.8 KVAh)

1 MVAh... 9.999 MVAh;0.001 MVAh;±(2 % + 0.008 MVAh)

Reactive energy

Measurement range;Resolution;Accuracy

0 KVARh ... 9.999 KVARh;0.001 KVARh;±(2 % + 0.008 KVARh)

10 KVARh ... 99.99 KVARh;0.01 KVARh;±(2 % + 0.08 KVARh)

100 KVARh ... 999.9 KVARh;0.1 KVARh;±(2 % + 0.8 KVARh)

1 MVARh... 9.999 MVARh;0.001 MVARh;±(2 % + 0.008 MVARh)

Power factor

Measurement rangeResolutionAccuracy

0 ... 10.01±0.04

Phase angle

Measurement range;Resolution;Accuracy

-180º ... 180º;0.1º;±1º

Frequency

Measurement range;Resolution;Accuracy

45 Hz ... 65 Hz;0.1 Hz;0.1 Hz

General specifications

Display:3.7" / 94.0 mm LCD (320 x 240 pixel) with backlight

Electrical properties:ACV, ACA, active power, apparent power, power factor, phase angle, mains frequency

Voltage range:10 ... 600 ACV, automatic range selection

Safety standards:Complies with IEC 1010, CAT III 600 V

ACV input resistance:10 MΩ

Operation frequency of current clamps:40 Hz ... 1 kHz

Tested operation frequency of current clamps:45 Hz ... 65 Hz

Overload protection:ACV / 720 V RMS

ACA:1300 A with current clamps

Memory: SD card, up to 16 GB

Real-time measurement rate:1 second

Data logger:Yes, fully integrated

Data logger measurement rate:Adjustable, 2 ... 7,200 seconds

Data output:USB or RS-232, depending on the connection cable

Operating temperature:0º C ... 50º C / 32° F ... 122° F

Operating humidity:< 80 % RH

Power supply:8 x 1.5 V AA batteries / AC power adapter

Input current:Meter: 300 mA DC; Clamp: 34 mA DC

Max. diameter:2" / 50 mm

WeightMeter: 948 g / 2.09 lbs (with batteries)

Clamp: 467 g / 1.03 lbs (with cable)

Dimensions:

Meter: 225 x 125 x 64 mm / 8.8 x 4.9 x 2.5"

Clamp: 210 x 64 x 33 mm / 8.2 x 2.5 x 1.2"

Jaw: 86 mm / 3.3" (exterior)

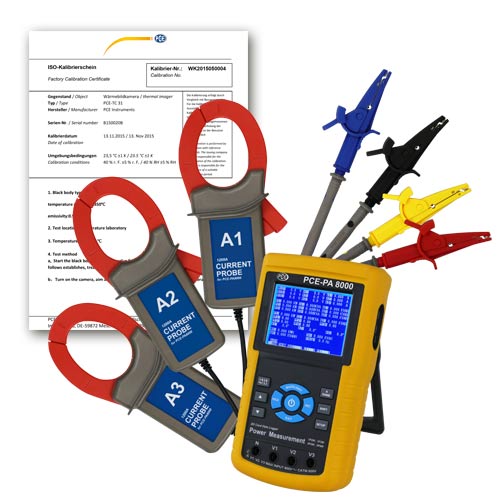

Delivery contents

1 x PCE-PA 8000 Power Analyzer

3 x Current clamps

4 x Alligator clips

4 x Test leads

1 x SD card

8 x 1.5 V AA batteries

1 x AC power adapter

1 x User manual

1 x Carrying case

1 x ISO Calibration Certificate
