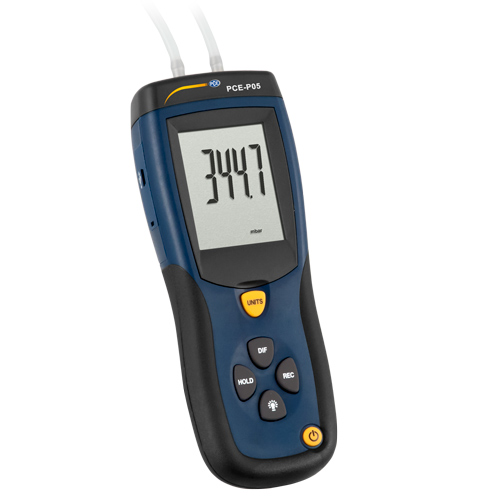

PCE P05 Differential Pressure Meter (0.001~0.344 bar)

Specifications

Measuring range

inH2O: 138.30

psi: 5.000

mbar: 344.7

kPa: 34.47

inHg: 1.018

mmHg: 258.5

ozin²: 80.00

ftH2O: 11.53

cmH2O: 351.5

kgcm²: 0.351

bar: 0.344

Resolution

inH2O: 0.1

psi: 0.001

mbar: 0.1

kPa: 0.01

inHg: 0.001

mmHg; 0.1

ozin²: 0.01

ftH2O: 0.001

cmH2O: 0.1

kgcm²: 0.001

bar: 0.001

Measuring range: 0.000 to 5.000 psi

Units of measure: bar, mmHg, ozin², kgcm², psi, inH2O, kPa, ftH2O, inHg, cmH2O, mbar

Resolution: 0.001 psi

Accuracy: ±0.2% of full scale at 25°C / 77°F

Response time: 0.5 seconds

Power supply: 1 x 9V battery or 1 x 9V DC / 500-mA power supply (included)

Approx. Dimensions: 210 x 75 x 50 mm / 8.27 x 2.95 x 1.97 in

Approx. Weight: 650 g / 1.44 lb

Dilivery Contents

1 x PCE-P05 differential pressure meter

4 x 30 cm / 11.81 in silicon tubes

1 x CD-ROM with PC software

1 x USB cable

1 x 9V block battery

1 x 9V DC / 500-mA power adapter

1 x Plastic carrying case

1 x User manual
