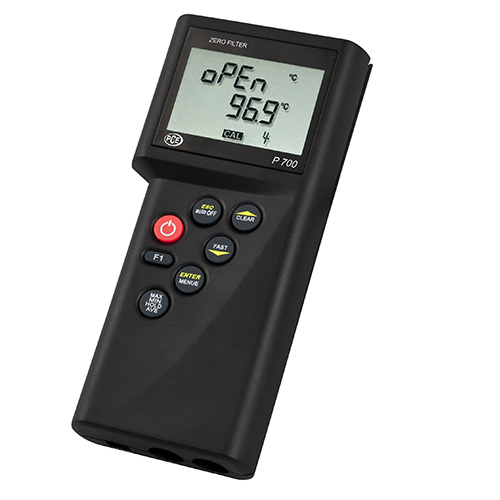

PCE P-700 Contact Thermometer (-200°C~850°C, ± 0.1°C)

Manufacturer: PCE-UK

Model: P-700

Warranty: 12 months

Specifications

Measurement Ranges

Pt100: -200 ... 850°C / -328 ... 1562°F gem. EN 60751

Thermo-elements: -200 ... 1760°C / -328 ... 3200°F to meet the EN 60584-1 standard

Accuracy

Pt100: ± 0.1°C / 0.18°F (-100 ... 200ºC / -148 ... 392°F)

0.1% for the whole range

R, S Thermo-elements: ±0.1% + 0.1% of the measurement value

K, J, L, N, T Thermo-elements: ±0.2°C / 0.36°F

(0 ... 200°C / 32 ... 392°F)

±0.5°C / 0.9°F (to 1000°C / 1832°F)

±1.0°C / 1.8°F (for the whole range)

Resolution:0.1°C / 0.18°F

Inputs:one channel for Pt100 sensors or thermo-elements: K, J, L, N. R, S, T

Connections for external sensors:Plug DIN

Interface:USB

Software + data cable:Optional accessories (see below)

Sensors:Optional accessories (see below)

Display:LCD

Power supply:9V battery (optional mains component)

Dimensions:200 x 93 x 44 mm / 7.9 x 3.7 x 1.7 in

Weight:350 g / < 1 lb

Dilivery Contents

1 x P-700 Contact Resistance Thermometer

1 x Battery

1 x User's manual
