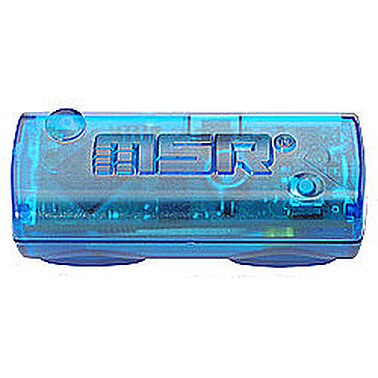

PCE MSR145S-THPA Data Logger

Measurement range:
Temperature
Humidity
Pressure
Acceleration

-10ºC up to 65ºC
0 - 100% r.h., -20ºC up to 65ºC
0 - 2500 mbar absolute
±10g / ±2g selectable

Accuracy:
Temperature

Humidity

Pressure
Acceleration

±0.1ºC (5ºC up to 45ºC)
±0.2ºC (-10ºC up to 65ºC)
±2% r.h. (10 - 90% r.h., 0ºC up to 40ºC)
±0.5ºC (0ºC up to 40ºC)
±2.5 mbar (750-1100 mbar absolute)
±0.15g (25ºC)

Measurement quota:
Temperature and humidity
Pressure
Acceleration

1/s for 12 h
10/s for 12 h
50/s for 12 h

Memory

up to 2,000,000 readings

Start / finish time and date

programmable

Alarm levels

user adjustable

Status indication

3 LEDs

Port

USB

Software

included

Dew point

is calculated by the software once data has been received (accuracy of ±2ºC)

Power

rechargeable lithium-polymer (170 mAh)
Batteries are charged via the USB port
A single charge will last several months (1 measurement per minute).

Operating conditions

-20 to 65ºC / 500 mbar to 2500 absolute

Dimensions

20 x 15 x 52mm PCE-MSR 145S

Weight

16 g PCE-MSR 145S

Operating temperature

-20 to 70°C

Cover material

silicone

Medium

Aire en el PCE-MSR 145S

Standards

meets with EU RoHS / WEEE
PCE-MSR 145S: IP 60
