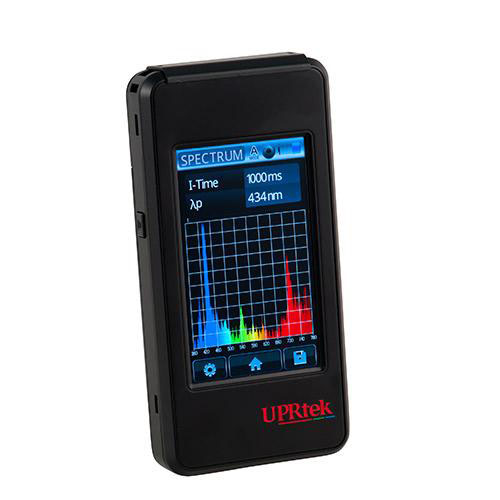

PCE MK350S LED Color Meter (70~ 70000 Lux)

Manufacturer: PCE-ANH

Model : MK350S

Warranty : 12 months

Specification

Sensor: CMOS linear image sensor

Spectral band width: Approx. 12 nm

Receptor size: Ø 6.6 ± 0.1 mm

Cosine Balance

Measurement range: 70 ... 70000 Lux

Range of wave lengths: 280 ... 780 nm

Averaging time range: 6 ... 5000 ms

Sampling rate: Single / continuous

Averaging mode: Automatic / manual

Measuring mode:

Basic mode

Light spectrum diagram mode

CIE 1931 Chromaticity shares

CIE 1976 Chromaticity shares

Color Index mode

Lux mode

Logging mode

CCT color temperature

Mode for quality control

Comparative measurement mode

View of measured data

Measurement functions:

CCT

Lux measurement

CRI Ra / R1 ... R15

Spectral radiation

CIE chromatic coordination

wave length (peak / dominance)

Δx, Δy, Δu', Δv'

Duv, Purity

PPF (400 ... 700 nm)

PPF-R (600 ... 699 nm)

PPF-G (500 ... 599 nm)

PPF-B (400 ... 499 nm)

PPF-UV (380 ... 399 nm)

PPF-NIR (700 ... 780 nm)

BIN

Digital resolution: 16 bits

Calibration on black: yes

Repeatability wave length: ± 0.5 nm

Accuracy illumination level (at color temperature: 2856 K / Brightness: 20 kLux): ± 5%

Accuracy of color measurement : ± 0.0025 in CIE 1931 x,y

Repeatability of color measurement (at color temperature: 2856 K / Brightness: 20 kLux): ± 0.0005 in CIE 1931 x,y

Accuracy of color temperature CCT (at color temperature: 2856 K / Brightness: 20 kLux): ± 2%

CRI accuracy @ Ra (at color temperature: 2856 K / Brightness: 20 kLux): ± 1.5%

General Technical Specifications of LED Spectrometer

Display: 3.5'' LCD 320 x 240 Touch Panel

Camera resolution: 800 x 480 pixels

Touch screen

Max. data capacity: 2 mega pixels

Battery operation: 2000 data sets on 2 GB memory card

Battery type: Approx. 4 hours with fully charged battery

Data output: 2500-mAh/ Li-Ion; SD memory card

Data format: MS Excel; JPG

Dimensions: 163 x 81 x 51.8 mm / 6.4 x 3.1 x 2.03 in (H x W x D)

Weight (with battery): Approx. 250 g / < 1 lb

Operating temperature: 0 ... 35°C / 32 ... 95°F

Surrounding temperature: -10 ... 40°C / 14 ... 104°F

Languages: English; Japanese; Chinese

Delivery contents

1 x LED Spectrophotometer MK350S

1 x Hard case

1 x Protecting case

1 x Battery

1 x USB cable

1 x Charging adapter

1 x Safety band

1 x Instruction manual

1 x Holder for stand

Manual
