-Measuring function: DC Milli Tesla
Measuring range ResolutionAccuracy
300.00 mT 0.01 mT ± (4% + 10 Dgt)
2,000.0 mT 0.1 mT ± (4% + 10 Dgt)
2,000.1 ... 3,000.0 mT 0.1 mT N / A
-Measuring function: DC Gauss
Measuring range ResolutionAccuracy
3,000.0 G 0.1 G ± (4% + 10 Dgt)
20,000 G 1 G ± (4% + 10 Dgt)
20.0001 ... 30.000 G1 G N / A
- Measuring function: AC milli Tesla
Measuring rangeResolutionAccuracy
150.00 mT 0.01 mT ± (5% + 20 Dgt)
1,500.0 mT 0.1 mT ± (5% + 20 Dgt)
-Measuring function: AC Gauss
Measuring rangeResolutionAccuracy
1,500.0 G 0.1 G ± (5% + 20 Dgt)
15,000 G 1 G ± (5% + 20 Dgt)
The accuracies refer to the following ambient conditions:
23°C / 73.4°F ± 5°C / 41°F, < 80% RH
-Measuring function: Temperature
Measuring rangeResolutionAccuracy
-20 ... 50°C ± 0.1°C ± 1.0°C
-4 ... 122°F ± 0.18°F ± 1.8°F
AC Frequency: 40 ... 500 Hz
Storage:Manual: up to 200 values; Automatic: up to 7,000 values
Interface: Mini USB
Display: LC display, 5 digits, display up to 30,000
Sensor: Removable, cable length approx. 1 m / 3.3 ft
Automatic switch-off function: Off or after 15 minutes
Power supply batteries: 6 x 1.5V AAA
Battery Life: About 100 hours
Power supply power supply: Primary: 100 ... 240V; Secondary: 9V, 0.5A
Operating conditions: 5 ... 40°C / 41 ... 104°F, < 80% rh
Storage conditions: 0 ... 50°C / 32 ... 122°F, < 70% rh
Working height: 2,000 m / 6,561.7 ft
Pollution degree: 2
Dimensions: 156 x 73 x 35 mm / 6.1 x 2.9 x 1.4 in
Weight: About 320 g / < 1 lb (with batteries)
Delivery Scope:

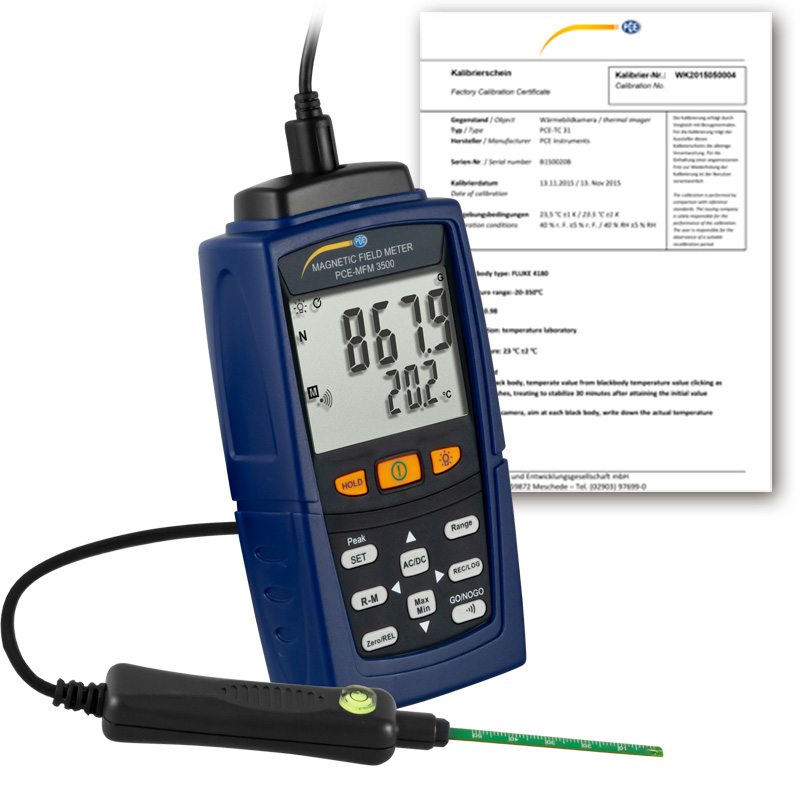

1 x Electromagnetic field meter PCE-MFM 3500
1 x Probe
1 x Mini USB cable
1 x Software CD
6 x AAA 1.5V batteries
1 x Power supply
1 x Device bag
1 x User manual
1 x ISO calibration certificate
