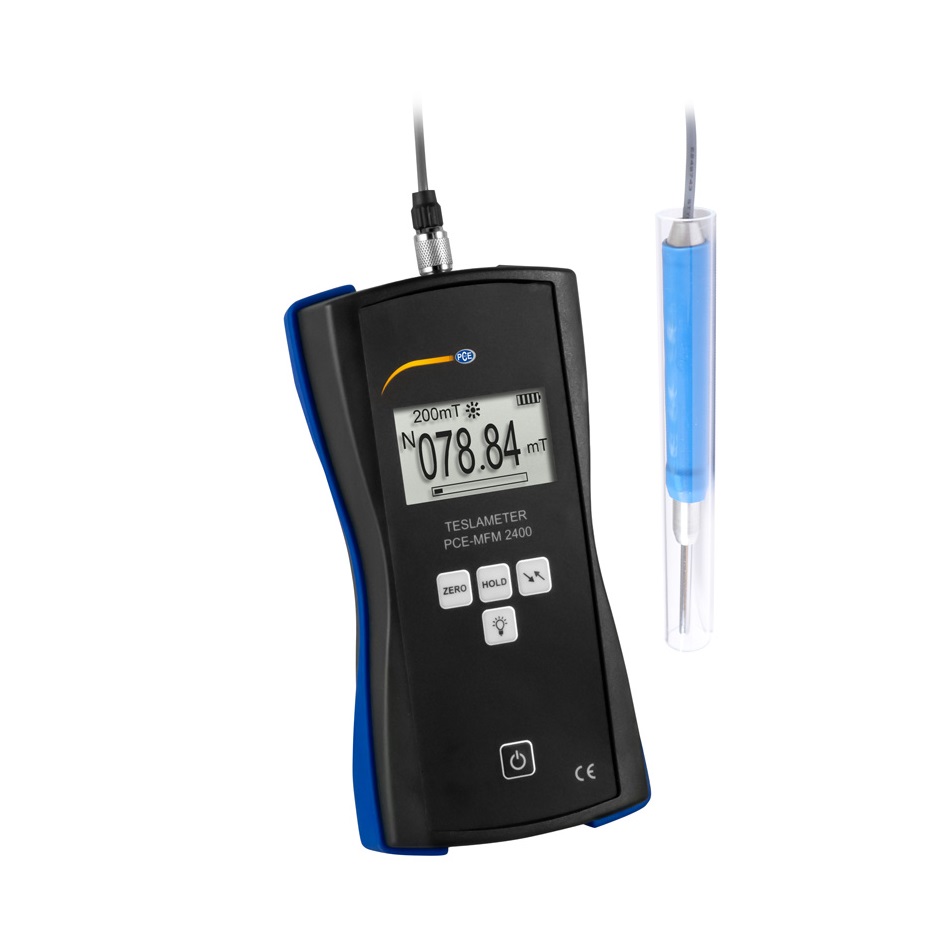

PCE MFM 2400+ Magnetometer

Measuring range

0… 200 mT

200… 2,400 mT

0 ... 2,000 G

2,000 ... 24,000 G

Accuracy: ± 1% of reading

Resolution: 0.01 mT / 0.1 g

Measuring direction: Axial

Magnetic field: Static (DC)

Unit: mT, G

Power supply; 1 x 9V block battery

Display: Backlight digital 4-digit value display

Operating temperature: 0… 50°C / 32 ... 122°F

Storage temperature: -20… 50°C / -4 ... 122°F

Dimensions: 185 x 97 x 40 mm / 7.28 x 3.82 x 1.57 inch

Weight: 310 g / < 1 lb

Sensor: Hall sensor axial, cable length approx. 2 m / 6.6 ft

Delivery Scope:

1 x Magnetometer PCE-MFM 2400+

1 x Hall sensor (axial)

1 x Service bag

1 x 9V block battery

1 x Instruction manual
