LXT-TRM-ICA Light Meter (0~50.000 lux)

Specification

Lux sensor

Measuring range:0 ... 50,000 lux in three areas

Resolution:0.1 lx / 1 lx

Accuracy:± 5% of the reading

Sensor:Photo diode with color correction filter according to CIE

Care:Via transmitter

Cable length (sensor to transmitter): 1.5 m / 4.9 ft

Environmental conditions:Max. 80% relative humidity, 0 ... 50°C / 32 ... 122°F

Housing material:ABS plastic

Transmitter

Casing:ABS plastic

Care:90 ... 260 ACV

Calibration:Adjustable via grub screws

Exit:4 ... 20-mA

Protection:IP 54

Environmental conditions:Max. 85% relative humidity, 0 ... 50°C / 32 ... 122°F

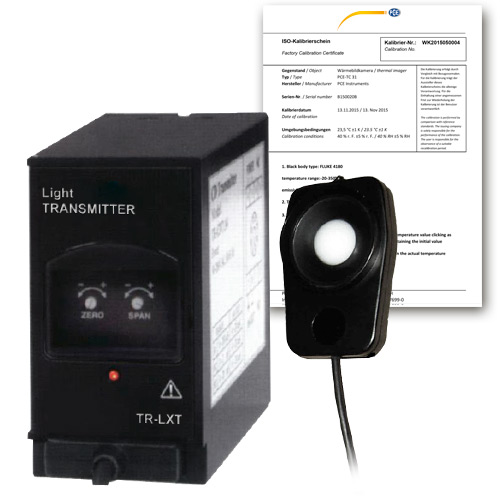

Delivery contents

1 x Environmental tester LXT-TRM-ICA

1 x Lux sensor on 1.5 m / 4.9 ft cable

1 x Light transmitter

1 x User manual

1 x ISO calibration certificate
