Specifications
Display modes:Measurement: mA / V / / mV ; Simulation: mA / V / / mV
Maximum input voltage:30V DC
Input impedance measurement:mV / V:> 1 MΩ ; Current measurement: 10 Ω
Response time:<100 ms
Load impedance:> 10 kΩ at mV / V ; <750Ω at mA
Refresh rate display:10 Hz
Isolation:500V DC
Data storage:Internal memory ; 150000 readings
Interface:USB 2.0
Display:2.4" TFT LCD ; 240 x 320 pixels ; LED illuminated
Output voltage current loop:24V DC / 24-mA
HART mA loop resistance: 250 Ω ± 20%
Special features:Step and ramp function ; Automatic and manual mode √x, x2: For the measuring function
Continuity test:Adjustable threshold up to 100 Ω
Power supply:3.7V / 2300-mAh Li-ion battery
Charging time:About 5 h
Power adapter:Input: 100 ... 240V AC / 50/60 Hz ; Output: 5V / 1 A DC
Battery life:Approx. 18 h: Simulation and measurement with low LCD illumination, approx. 8 h: Measurement with low LCD illumination
Dimensions:162 x 82 x 40 mm / 6.4 x 3.2 x 1.6 in
Weight:About 300 g / < 1 lb
Degree of protection:IP20
Operating conditions
Battery operation: 0 ... 55°C / 32 ... 131°F, 30 ... 90% RH Main operation: 0 ... 45°C / 32 ... 113°F, 30 ... 90% RH
Storage conditions:-20 .. 60°C / -4 ... 140°F, 30 ... 90% RH non-condensing
Heating time:About 15 minutes
Dilivery Contents

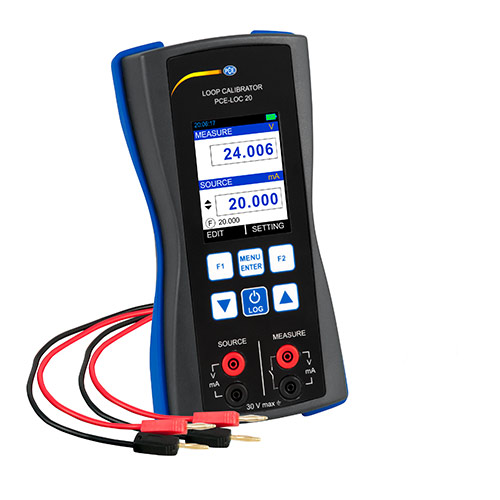

1 x Current calibrator PCE-LOC 20
2 x Laboratory cables with 2 mm plug
2 x Adapter 2 mm on 4 mm laboratory cable
2 x Alligator clips
1 x Mini USB cable
1 x Power supply 5V / 1 A
1 x Carrying bag
1 x Software
1 x User manual
