PCE LES 300 Automotive Tester / Stroboscope

Specifications

Measuring range:1 ... 2000 Hz; 60 ... 120000 FPM

Accuracy:±0.01%

Resolution:

1 ... 200 Hz: 0.01 Hz

200 ... 2000 Hz: 0.1 Hz

1 ... 200 Hz: 0.01 Hz

200 ... 2000 Hz: 0.1 Hz

60 ... 12000 FPM: 0.1 FPM

12000 ... 120000 FPM: 1 FPM

Flash durati:on:0.1°/360° … 2.5°/360°

Power supply:Power supply: 12V, 0.5 A

Battery: 1050-mAh, 11.1V

Charging time:Ca. 3 h

Environmental conditions:0 ... 45°C / 32 ... 113°F, 35 ... 85% r.H.

Dimensions:210 x 202 x 57 mm / 8.3 x 8 x 2.2 in

Weight:440 g / 1 lb

Illuminance:5100 lux at 20 cm / 7.9 in distance at 6000 FPM

Flashing colour:Ca. 5000

Protection:IP64

Dilivery Contents

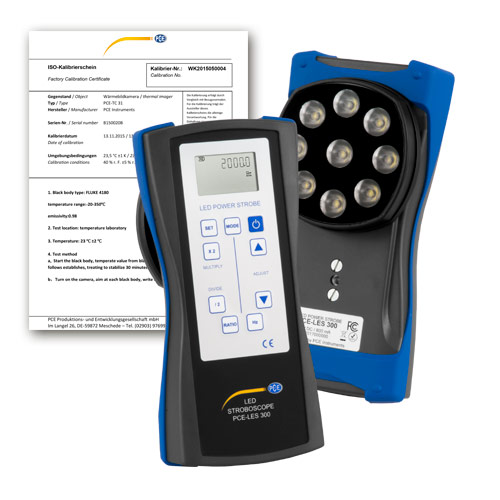

1 x PCE-LES 300 handheld automotive tester

1 x Power supply

1 x ISO factory calibration certificate

1 x Instruction manual

1 x Case
