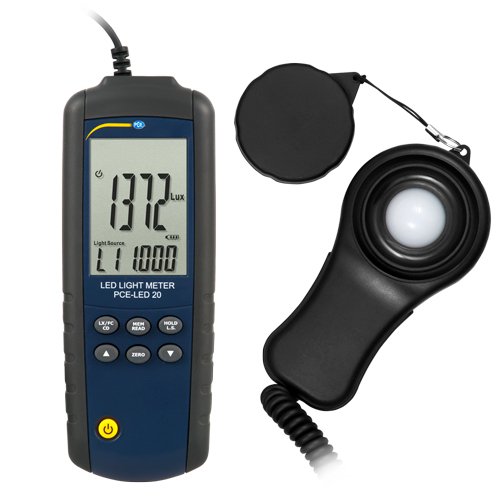

PCE-LED 20 LED Light Meter (40/400/4000/40000/400000 lx or fc)

Specification

Measuring ranges:40 / 400 / 4000 / 40000 / 400000 lx

40 / 400 / 4000 / 40000 fc

Measuring units:Lux (lx) or footcandle (fc)

Sensor:Silicone photodiode with built-in filter

Display:

Max. representation 3999

Representation of 40000 / 400000 lux and 40000 fc in klux and kfc respectively

Measuring accuracy:± 3% (for a standard incandescent lamp at 2856 K and LED white light)

± 6% for other visible light sources

Overload indication:OL = Overload

Internal memory:99 measured values

Measuring rate:2.5 x per second

Measurable sources of light:LED and any other visible light

Measuring functions:

Maximum / Minimum / Average / Hold / Zero

Automatic balance

Automatic shutdown

Automatic range selection

Power supply:3 x 1.5V AAA batteries

Operating conditions:5 ... 40°C / 41 … 104°F, 0 ... 70% RH

Storage conditions:-10 ... 60°C / 14 … 140°F, 0 ... 70% RH

For compliance with standardsEMC:

EN 61326-1 (2006)

IEC 61000-4-2 (2006)

IEC 61000-4-3 (2006) + (2007)

JIS C1609: 1993

CNS 5519

OSHA § 1915.82

Dimensions:Approx. 162 x 62 x 28 mm / 6.4 x 2.5 x 1.1 in (L x W x H)

Weight: Approx. 250 g /< 1 lb

Length of sensor cable:Approx. 1.5 m / 4.9 ft

Reproducibility:± 3%

Delivery contents

1 x PCE-LED 20 LED light meter

1 x Light sensor with protective cap

3 x Batteries

1 x Carrying case

1 x User manual
