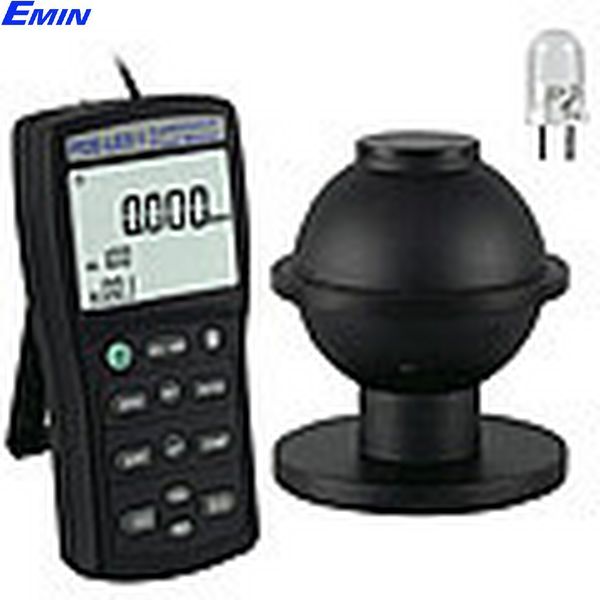

PCE-LED 1 Light Meter

Ranges

0.05 ... 7000 lumens in 4 ranges
0.05 ... 9.999
10.00 ...99.99
100.0...999.9
1000 ... 7000

Resolution

0.05 ... 9.999 / 0.001 lumen
10.00 ... 99.99 / 0.01 lumen
100.0 ...999.9 / 0.1 lumen
1000 ... 7000 7 / 1 lumen

Accuracy

0.05 ... 1.0 / ±7 %
0.1 ... 1000 / ±2 %
1000 ... 7000 / ±3 %

Overloadindicator

OL = Overload

Sensor

siliconphotodiode

Sensor connection

25 mm with adapter for 2, 3, 4, 5, 8, 10 and 24 mm

Measurementsequence

every 5 seconds

Memory
- manual
- automatic

999 values
38,000 values

Operatingconditions

0 ... 50 ºC / 0 ... 80 % r. H

Storage conditions

-10 ... 60 ºC / 0 ... 70 %r. H.

Display

4 digits LCD display

Power

6 x 1.5 V AAA batteries

Dimensions
- Meter
- Sensor
- Connection

150 x 72 x 35 mm
108 x 94 mm
800 mm

Weight

470 g
