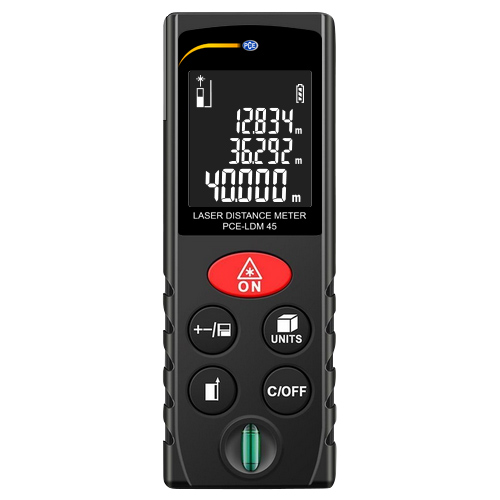

PCE LDM 45 Distance Meter

Specifications

Distance measuring range:0.05 ... 40 m / 0.7 ... 55.8 ft

Measurement accuracy:<10 m: ± 2 mm ; > 10 m ± 2 mm + 0.05* (measuring distance -10)

Resolution:1 mm

Units:m, inch, ft, m², ft²

Measurement functions:

Single measurement

Max / Min Function

Continuous measurement

Area

Calculation Volume calculation

Pythagoras function

Laser class:Class II; <1 mW, 620 ... 690 nm

Measuring time single measurement: 0.25 seconds

Power supply:2 x 1.5V AAA battery

Battery life:> 5000 individual measurements

Dimensions (L x W x H):110 x 40 x 25 mm / 4.3 x 1.6 x 1 in

Weight:76 g / < 1 lb without batteries

Environmental conditions:0 ... 40°C / 32 ... 104°F

Storage conditions:-20 ... 65°C / -4 ... 149°F

Automatic shutdown laser:30 seconds

Dilivery Contents

1 x Laser distance meter PCE-LDM 45

2 x AAA 1.5V battery

1 x User manual

Manual
