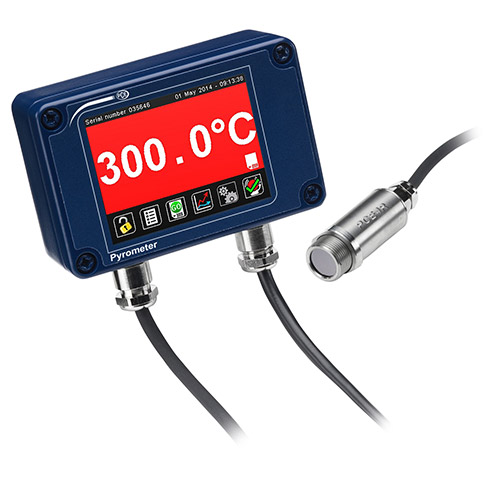

PCE IR 55 Infrared Thermometer (250°C~2000°C; ± 1%)

Specification

Measurement range (selectable): 250 ... 1000°C / 482 ...3632°F; 450 ... 2500°C / 842 ... 4532°F

Accuracy:± 1% of measured value

Emissivity:0.2 ... 1.0 adjustable

Distance-to-target ratio:25:1

Spectral range:2 ... 2.6 µm

Power supply:24V DC

Output:4 ... 20-mA

Impedance:900 ohms

Interface (selectable):Modbus RTU

Storage interval:1/s ... 1/day

Micro SD card:Max. 2 GB (not included)

Data format:CSV

Alarm relay (selectable):Changeover relay 24V / 1 A DC

Dimensions display:96 x 64 x 36 mm / .3 x .2 x .1 in

Dimensions temperature sensor:Ø18 x 45 mm / .06 x .1 in; M16

Cable length:1 m / 3.3 ft

Weight:390 g / < 1 lb

Protection class:IP65

Ambient temperature:0 ... 70°C / 32 ... 158°F

Ambient humidity:Max. 95% RH

Delivery contents

1 x Infrared thermometer PCE-IR 55

1 x User manual
