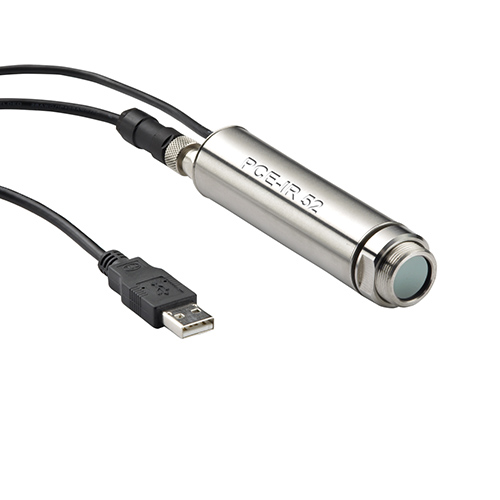

PCE IR 52 Infrared Thermometer (-40°C~1000°C; ± 1%)

Specification

Measurement range:-40 ... 1000°C / -40 ... 1832° (non-metal)

Accuracy:± 1% of measured value

Emissivity: 0.1 ... 1.0 adjustable

Response time:240 ms

Spectral range:8 ... 14 µm

Power supply:24V DC

Impedance:900 ohms

Material:Stainless steel

Dimensions:25 mm x 106.5 mm / 1 x 4.2 in w/o connection cable

Connection thread:M20

Cable length:1 m / 3.3 ft

Weight:170 g / < 1 lb

Protection class:IP65

Ambient temperature:0 ... 70°C / 32 ... 158°F

Ambient humidity:Max. 95% RH

Delivery contents

1 x Infrared thermometer PCE-IR 52

1 x Software

1 x User manual
