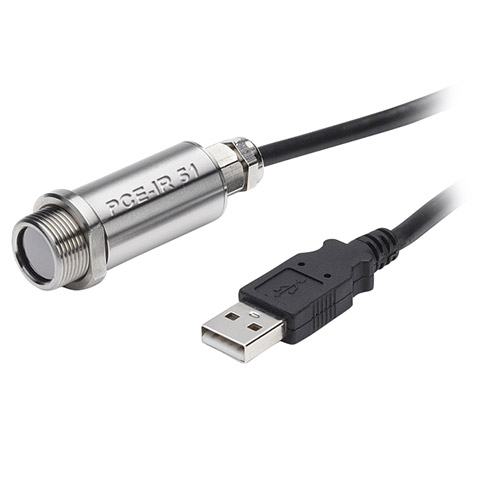

PCE IR 51 Infraded Temperature Meter (-20 ~ 1000 ° C, ± 1%)

Specification

Measurement range:-20 ... 1000°C / -4 ... 1832°F

Accuracy:± 1% of measured value

Emissivity: 0.2 ... 1.0 adjustable

Optics:20 : 1

Response time:125 ms

Spectral range:8 ... 14 µm

Power supply:5V DC

Power consumption:50-mA

Baud rate:9600

Data format:

8 data bit

no parity

1 stop bit

Protocol:Modbus

Material:Stainless steel

Dimensions:18 mm x 45 mm / .7 x 1.8 in w/o connection cable

Cable length:1 m / 3.3 ft

Weight:85 g / < 1 lb

Protection class:IP65

Ambient temperature:0 ... 75°C / 32 ... 167°F

Ambient relative humidity: Max. 95% RH

Delivery contents

1 x Temperature meter PCE-IR 51

1 x Software

1 x User manual
