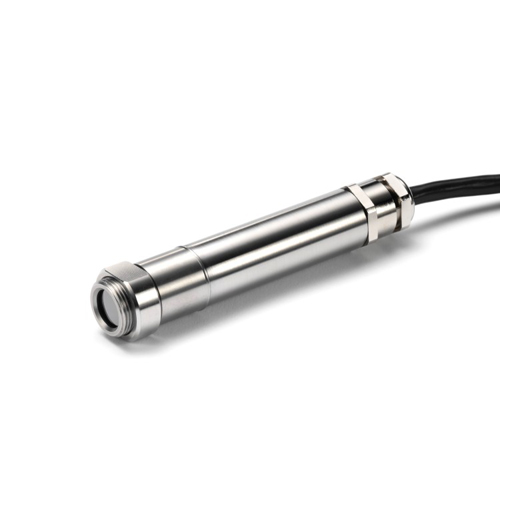

PCE IR 50 Temperature Sensor (0 ~ 500°C, ± 1.0°C)

Specification

Measurement range:0 ... 500°C / 32 ... 932°F

Accuracy:± 1.0°C / 1.8°F, or ± 1% of measured value, higher value applies

Repeatability:± 1.0°C /1.8°F, or ± 0.5% f measured value, higher value applies

Optical resolution:20:1

Output signal:4 ... 20-mA

Spectral sensitivity:8 ... 14 μm

Emissivity:Fixed 0.95

Measuring time:0.5 s

Cable length:1.8 m / 4.9 ft

Power supply:24V DC

Protection class:IP65

Material:Aluminium

Ambient temperature:0 ... 60°C / 32 ... 140°F

Operating temperature:-20°C ... 80°C / -4 ... 175°F

Relative humidity:10 ... 95%

Delivery contents

1 x Temperature meter PCE-IR 5

1 x Mounting bracket

1 x User manual
