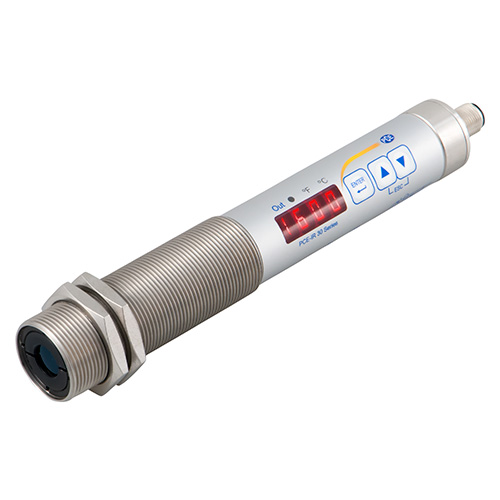

PCE IR 32 Infrared Thermometer (250°C~1600°C)

Specification

Measuring range:250 ... 1600°C / 482 ... 2912°F (metals, ceramics, glass melt)

Spectral range:1 ... 1.7 µm

Focus distance:1500 mm / 4.9 ft

Measurement spot: @ 1500 mm10 mm / .03 in

Analog output:0/4 ... 2- mA (scalable)

Load:500 Ω

Current output resolution:0.2 K + 0.03%

Display:LED

Resolution Display:1

Response time: t98 <2 ms

Repeatability:1 K

Uncertainty:0.3% from the measurement + 2.5 K

Switching output:OC 24V / 150-mA

Power supply:24V DC

Environmental Electronics:0 ... 65°C / 32 ... 149°F, max. 95% r.h.

Weight:400 g / < 1 lb

Dimensions Electronics:M30 x 185 mm (without plug)

Delivery contents

1 x Infrared thermometer PCE-IR 32

1 x User manual
