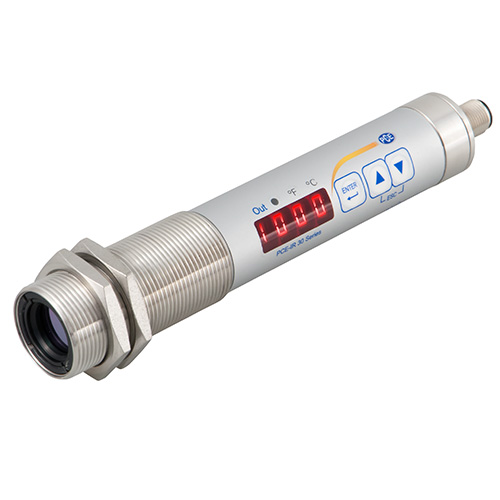

PCE IR 31 Infrared Thermometer (0~1000°C)

Specification

Measuring range:0 ... 1000°C / 32 ... 1832°F (non-metals)

Spectral:8 ... 14 μm

Focus distance:300 mm / 11.8 in

Measurement spot: @ 300 mm / 11.8 in 11 mm / .4 in

Analog output:0/4 ... 20-mA (scalable)

Burden:500 Ω

Resolution current output:0.2K + 0.03%

Display:LED display

Resolution display: 0.1 K <200°C / 392°F

1 K> = 200°C / 392°F

Response time: t9860 ms

Reproducibility:1K

Measurement uncertainty:0.75% of the reading + 2K

Switching output OUT 1:OC 24V / 150-mA

Power supply:24V DC

Environmental conditions:0 ... 65°C / 32 ... 149°F, max. 95% RH

Weight:400 g / < 1 lb

Dimensions:M30 x 185 mm / 1.2 x 7.3 in (without plug)

Delivery contents

1 x PCE-IR 31 infrared thermometer

1 x User manual

Datasheet
