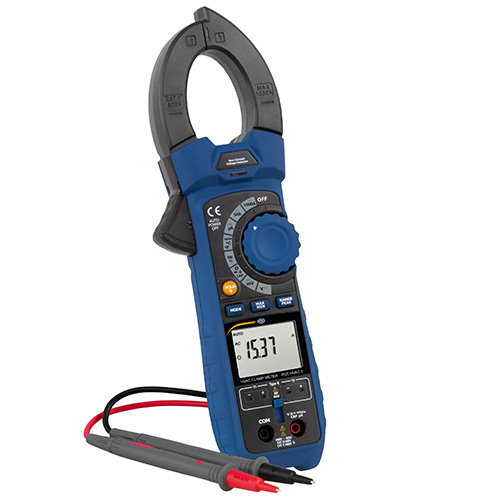

PCE HVAC 6 Clamp-MultiMeter (AC/DC 1000 A True RMS)

Specifications

Current measurement DC A

Measuring range;Resolution;Accuracy (of measurement value)

500 μA;0.01 μA;± (1% + 6 digits)

5000 μA;0.1 μA;± (1% + 6 digits)

50 A;0.01A;± (2.5% + 5 digits)

1000 A;0.1 A;± (2.5% + 30 digits)

Current measurement AC A

Measuring range;Resolution;Accuracy (of measurement value)

500 μA;0.01 μA;± (1.5% + 30 digits)

5000 μA;0.1 μA;± (1.5% + 30 digits)

50 A;0.01A;± (2.5% + 30 digits)

1000 A;0.1 A;± (2.8% + 30 digits)

Resistance measurement

Measuring range;Resolution;Accuracy (of measurement value)

500 Ω;0.01;± (1% + 9 digits)

5 kΩ;0.0001;± (1% + 5 digits)

50 kΩ;0.001;± (1% + 5 digits)

500 kΩ;0.01;± (1% + 5 digits)

5 MΩ;0.0001;± (3% + 10 digits)

50 MΩ;0.001;± (3.5% + 10 digits)

Voltage measurement DC V

Measuring range;Resolution;Accuracy (of measurement value)

500 mV;0.01 mV;± (0.1 % + 8 Digit)

5 V;0.0001 V;± (0.1 % + 4 Digit)

50 V;0.001 V;± (0.1 % + 4 Digit)

500 V;0.01 V;± (0.1 % + 4 Digit)

600 V;0.1 V;± (0.5 % + 4 Digit)

Voltage measurement AC V (50 Hz ... 100 Hz)

Measuring range;Resolution;Accuracy (of measurement value)

500 mV;0.01 mV;± ( 0.8 % + 9 Digit) (at 50 Hz / 60 Hz)

5 V;0.0001 V± (1 % + 30 Digit)

50 V;0.001 V;± (1 % + 30 Digit)

500 V;0.01 V;± (1 % + 30 Digit)

600 V;0.1 V;± (1 % + 30 Digit)

Capacitance measurement

Measuring range;Resolution;Accuracy (of measurement value)

500 nF;0.01;± (3.5% + 40 digits)

5000 nF;0.1;± (3.5% + 10 digits)

50 μF;0.001;± (3.5% + 10 digits)

500 μF;0.01;± (3.5% + 10 digits)

5mF;0.0001;± (5% + 10 digits)

Frequency measurement

Measuring range;Resolution;Accuracy (of measurement value)

50 Hz;0.001± (0.3% + 2 digits)

500 Hz;0.01;± (0.3% + 2 digits)

5 kHz;0.0001;± (0.3% + 2 digits)

50 khz;0.001;± (0.3% + 2 digits)

500 kHz;0.01± (0.3% + 2 digits)

5 Mhz;0.0001;± (0.3% + 2 digits)

10 MHz;0.001;± (0.3% + 2 digits)

Duty cycle

Measuring range;Resolution;Accuracy (of measurement value)

5% ... 95%;0.1; ± (1% + 2 digits)

Pulse width: 100 μs ... 100 ms

Frequency: 10 Hz ... 10 kHz

Temperature

Measuring range;Resolution;Accuracy (of measurement value)

-100 ... 1000°C / -148 ... 1832°F;0.1;± (1% + 2.5°C / 3.5°F)

Conductor diameter:Max. 48 mm / 1.9 in

Display: Two lines 50,000 digits

Continuity test:50 ohms / < 50 mA

Diode test:0.3 mA / 2.8 V DC

Battery indicator:Battery icon when battery low

Overrange:OL, if measuring range exceeded

Sample rate:2 Hz

Peak detection:> 1 ms

Thermocouple:Type K

Fuse:500 mA ceramic quick-acting

AC bandwidth (AC A / AC V):50 Hz ... 400 Hz

AC measurement:True RMS

Operating conditions:5 ... 40°C / 41 ... 104°F, max. 80% RH at 31°C

Storage conditions:-20 ... 60°C / -4 ... 140°F, max. 80% RH

Power supply:9V block battery

Automatic shutdown:After about 30 minutes

Dimensions (W x H x D):230 x 76 x 40 mm / 9 x 3 x 1.6 in

Weight:315 g / < 1 lb

Safety:IEC 1010-1 (2001):

EN 61010-1 (2001)

CAT III 600V

CAT II 1000V Degree of pollution 2

Dilivery Contents

1 x Car measuring device PCE-HVAC 6

1 x Transport bag

2 x Test leads

1 x Battery 9V block battery
