Specifications
Operating conditions:0 ... 50°C / 32 ... 122°F, < 75% r.H.
Storage conditions:-20 ... 60°C / -4 ... 140°F, 0 ... 80 r.H.
Backlight:Blue
Battery:7.4V polymer Li-ion battery
Battery warning indicator:Empty battery symbol is displayed when the battery voltage drops below the operating level
Automatic shutdown:After 30 minutes of inactivity, when activated
Display outside the measuring range:"OL" or "-OL" is displayed
Technical Data Pressure Measurement
Type of connector:Standard 1/4 NPT (male)
Measuring range:
-14 ... +500 psi
-96 ... +4000 kPa
-0.96 ... +34.47 bar
-28.5 ... 1018 inHg
-72 ... +2585 cmHg
Resolution:
0.1 psi / inHg
1 kPa / cmHg
0.01 bar
Measuring accuracy at 25°C / 77°F, <75% r.H. -29 … 0 inHg: ± 0.2 inHg
-74 … 0 cmHg: ± 0.4 cmHg
0 … 200 psi: ± 1 psi
0 … 1378 kPa: ± 7 kPa
200 … 500 psi : ± 0.3% + 1 psi
1378 … 3447 kPa: ± 0.3% + 7 kPa
Maximum overload800 psi
Unitspsi, kPa, inHg, amHg, bar
Technical Data Temperature T1 / T2
Sensor type:Thermoelement Type K
Measuring range: -60 ... 537°C / -76 ... 998°F
Resolution:0.1°C / 32°F
Measuring accuracy:-60 ... 93°C / -76 ... 199°F: ± 0.5°C
93 ... 537°C / -199 ... 998°F: ± 1°C
Technical Data Ambient Temperature
Sensor type:NTC
Measuring range:0 ... 50°C / 32 ... 122°F
Resolution:0.1°C / 32°F
Measuring accuracy:±0.5°C / 33°F
Dilivery Contents

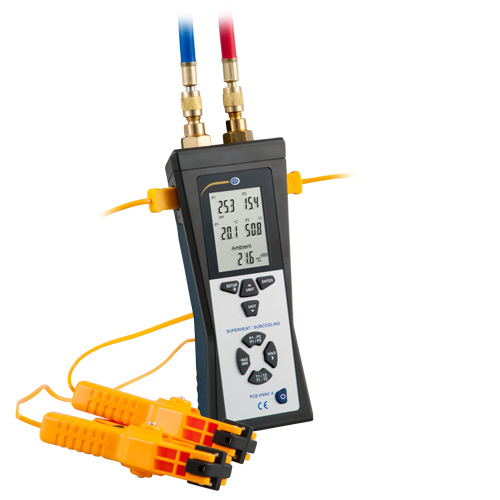

1 x Differential pressure meter PCE-HVAC 4
1 x 7.4V polymer Li-ion battery
1 x Power adapter
2 x Pressure hose
2 x Measuring terminal
2 x Thermoelement Type K
1 x Carrying case
1 x User manual
