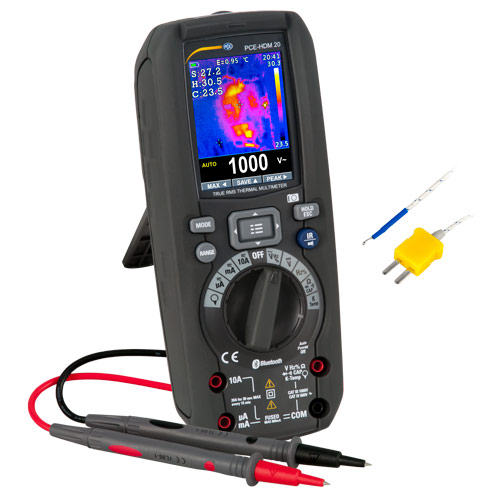

PCE HDM 20 Digital Multimeter

Specifications

Display:Colour TFT, 6000 points with status display

Conversion:TRMS

Reference standards:IEC/EN61010-1, IEC/EN61326-1

Isolation:Double

Pollution degree:2

Overload category:CAT IV 600 V, CAT III 1000 V

Battery type:1 x 7.4V Li-Ion battery, 2300-mAh

Power supply charger:100 / 240V AC, 50/60 Hz, 10V DC, 1 A

Battery level indicator:Yes

Automatic shutdown: After 15, 30 or 60 minutes of inactivity (deactivatable)

Fuses:F10A/1000V, 10 x 38 mm (Input 10 A); F800mA/1000V, 6 x 32 mm (Input mA, µA)

Test temperature:18 ... 28°C / 64 ... 82°F

Operating conditions:5 ... 40°C / 41 ... 104°F, <80% r.H.

Storage conditions:-20 ... 60°C / -4 ... 140°F, <80% r.H.

Maximum operating height:2000 m / 2187 yd

Dimensions:175 x 85 x 55 mm / 6.9 x 3.3 x 2.1 in

Weight:540 g / 1 lb 3oz

Technical Data DC Voltage

Measuring rangeResolution;Measurement accuracy;Input resistance;Overload protection

600 mV;0.1 mV; ± (0.2% of measurement value + 5 Dgt); >10 MΩ; 1000V DC / ACrms

6V;0.001V;± (0.2% of measurement value + 5 Dgt); >10 MΩ; 1000V DC / ACrms

60V;0.01V; ± (0.2% of measurement value + 5 Dgt); >10 MΩ; 1000V DC / ACrms

600V; 0.1V; ± (0.2% of measurement value + 5 Dgt);>10 MΩ; 1000V DC / ACrms

1000V;1V;± (0.2% of measurement value + 5 Dgt);>10 MΩ;1000V DC / ACrms

Technical Data AC Voltage (TRMS)

Measuring rangeResolution; Measurement accuracy

(50 ... 60 Hz); Measurement accuracy

(61 Hz ... 1 kHz); Overload protection

6V;0.001V;± (0.8% of measurement value +5 Dgt)±;

(2.4% of measurement value +5 Dgt);1000V DC / ACrms

60V;0.01V;± (0.8% of measurement value +5 Dgt);± (2.4% of measurement value +5 Dgt);1000V DC / ACrms

600V;0.1V;± (0.8% of measurement value +5 Dgt);± (2.4% of measurement value +5 Dgt);1000V DC / ACrms

1000V;1V;± (0.8% of measurement value +5 Dgt);± (2.4% of measurement value +5 Dgt);1000V DC / ACrms

Technical Data DC and AC voltage (TRMS)

Measuring rangeResolution;Measurement accuracy;Input resistance;Overload protection

6V;0.001V;± (2.4% of measurement value +20 Dgt);>10 MΩ; 1000V DC / ACrms

60V;0.01V;± (2.4% of measurement value +20 Dgt);>10 MΩ;1000V DC / ACrms

600V;0.1V;± (2.4% of measurement value +20 Dgt);>10 MΩ1000V DC / ACrms

1000V;1V;± (2.4% of measurement value +20 Dgt);>10 MΩ;1000V DC / ACrms

Technical Data Direct Current

Measuring rangeResolution;Measurement accuracy;Overload protection

600 µA;0.1µA;± (0.9% of measurement value +5 Dgt);Protection 800-mA / 1000 V

6000 µA1 µA;± (0.9% of measurement value +5 Dgt);Protection 800-mA / 1000V

60-mA;0.01-mA± (0.9% of measurement value +5 Dgt);Protection 800-mA / 1000V

600-mA;0.1-mA± (0.9% of measurement value +8 Dgt);Protection 800-mA / 1000V

10 A;0.01 A± (1.5% of measurement value +5 Dgt);Protection 10 A / 1000V

Technical Data Alternating Current (TRMS)

Measuring rangeResolution;Measurement accuracy;Overload protection

600 µA;0.1 µA;± (1.2% of measurement value +5 Dgt);Protection 800-mA / 1000V

6000 µA;1 µA;± (1.2% of measurement value +5 Dgt);Protection 800-mA / 1000V

60-mA;0.01-mA;± (1.2% of measurement value +5 Dgt);Protection 800-mA / 1000V

600-mA;0.1-mA;± (1.2% of measurement value +5 Dgt);Protection 800-mA / 1000V

10 A;0.01 A;± (1.5% of measurement value +5 Dgt);Protection 10 A / 1000V

Technical Data Coil Current

Measuring rangeResolution;Measurement accuracy

(50 ... 60 Hz);Measurement accuracy (61 Hz ... 1 kHz);Overload protection

30 A;0.01 A;± (0.8% of measurement value +5 Dgt);± (2.4% of measurement value +5 Dgt);1000V DC / ACrms

300 A;0.1 A;± (0.8% of measurement value +5 Dgt);± (2.4% of measurement value +5 Dgt);1000V DC / ACrms

3000 A1 A;± (0.8% of measurement value +5 Dgt);± (2.4% of measurement value +5 Dgt);1000V DC / ACrms

Technical Data Diode Test

Test current:<1.5-mA

Maximum voltage at the open circuit:3.3V DC

Resistance and continuity test

Measuring rangeResolution;Measurement accuracy;Acoustic warning sound;Overload protection

600 Ω;0.1Ω;± (0.5% of measurement value +10 Dgt);>50 Ω;1000V DC / ACrms

6 Ω;0.001 kΩ;± (0.5% of measurement value +5 Dgt);>50 Ω;1000V DC / ACrms

60 kΩ;0.01 kΩ;± (0.5% of measurement value +5 Dgt);>50 Ω;1000V DC / ACrms

600 kΩ;0.1 kΩ;± (0.5% of measurement value +5 Dgt);>50 Ω;1000V DC / ACrms

6 MΩ;0.001 MΩ;± (0.5% of measurement value +5 Dgt);>50 Ω;1000V DC / ACrms

60 MΩ;0.01 MΩ;± (2.5% of measurement value +10 Dgt);>50 Ω;1000V DC / ACrms

Technical Data Frequency

Measuring range;Resolution;

Measurement accuracy;Overload protection

40 Hz ... 10 kHz;0.01 Hz ... 0.001 kHz;± (0.5% of measurement value);1000V DC / ACrms

60 Hz;0.01 Hz;± (0.09% of measurement value +5 Dgt);1000V DC / ACrms

600 Hz;0.1 Hz;± (0.09% of measurement value +5 Dgt);1000V DC / ACrms

6 kHz;0.001kHz;± (0.09% of measurement value +5 Dgt); 1000V DC / ACrms

60 kHz;0.01kHz;± (0.09% of measurement value +5 Dgt);1000V DC / ACrms

600 kHz;0.1 kHz;± (0.09% of measurement value +5 Dgt);1000V DC / ACrms

6 MHz;0.001 MHz;± (0.09% of measurement value +5 Dgt);1000V DC / ACrms

10 MHz;0.01 MHz;± (0.09% of measurement value +5 Dgt);1000V DC / ACrms

Technical Data Duty Cycle

Measuring range;Resolution;Measurement accuracy; Overload protection

60 nF;0.01 nF;± (1.5% of measurement value +20 Dgt);1000V DC / ACrms

600 nF;0.1 nF;± (1.2% of measurement value +8 Dgt);1000V DC / ACrms

6 µF;0.001 µF;± (1.5% of measurement value +8 Dgt);1000V DC / ACrms

60 µF;0.01 µF;± (1.2% of measurement value +8 Dgt);1000V DC / ACrms

600 µF;0.1 µF;± (1.5% of measurement value +8 Dgt);1000V DC / ACrms

6000 µF;1 µF;± (2.5% of measurement value +20 Dgt);1000V DC / ACrms

Technical Data Temperature (Thermoelement Type K)

Measuring range; Resolution

Measurement accuracy;Overload protection

-40 ... 600°C / -40 ... 1112°F;0.1°C / 0.18°F;± (1.5% of measurement value 3°C / 5.4°F);1000V DC / ACrms

600 ... 1000°C / 1112°F ... 1832°F;1°C / 1.8°F± (1.5% of measurement value 3°C / 5.4°F);1000V DC / ACrms

Dilivery Contents

1 x Multimeter PCE-HDM 20

2 x Measurement line

1 x Type K Type K thermocouple probe

2 x Li-ion battery

1 x Charger

1 x Power plug

3 x Attachment for power plug

1 x Micro-SD Card (8 GB)

1 x Magnet

1 x Fabric loop

1 x Temperature adapter

1 x User manual
