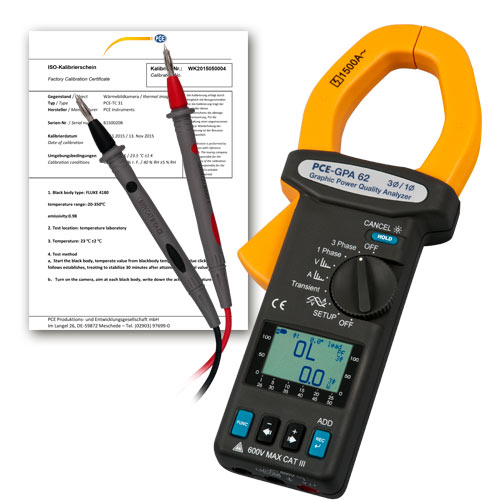

PCE GPA 62-ICA Current Clamp

Specifications

Voltage measurement:4.0 ... 600.0 V RMS value ± 0.5% of the measured value ± 5 digits / 0.1 V

Voltage peaks (> 10V):50 Hz - 60 Hz / ± 5% ± 50 digits

Current measurements:4.0 ... 1500.0 A real ± 1% V. of the measured value ± 5 digits / 0.01 A

Current peaks (> 20A):50 Hz - 60 Hz / ± 5% ± 50 digits

Active power P:

10 W ... 9999 kW in 5 measurement ranges

± 1% of the value + 20 digits (>20 V y >20 A)

± 2% of the value + 40 digits (>20 V y >20 A)

0.1 W ... 1 kW according to the measurement range

Apparent power S:

10 VA ... 9999 kVA in 5 measurement ranges

± 1% of the value + 20 digits (>20 V y >20 A)

± 2% of the value + 40 digits (>20 V y >20 A)

0.1 VA ... 1 kVA according to the measurement range

Reactive power Q:

10 VAr ... 9999 kVAr in 5 measurements ranges

± 1% of the value + 20 digits (>20 V y >20 A)

± 2% of the value + 40 digits (>20 V y >20 A)

0.1 VAr ... 1 kVAr according to the measurement range

PF power factor:

0.000 ... 1.000

± 0.04 (>20 V >20 A) / 0,001

± 0.1 (>20 V >20 A) / 0,001

Phase angle:

-180 ... +180 / ±1 / 0,1

0 ... +360 / ±1 / 0,1

Frequency measurement: (U > 50 V)46 ... 65 Hz ; ±0.3 Hz / 0.1 Hz

Active energy:0 ... 999.999 kWh; ± 1% of the value + 20 digits

Apparent energy:0 ... 999.999 kVAh; ± 1% of the value + 20 digits

Reactive energy: 0 ... 999.999 kVarh; ± 1% of the value + 20 digits

Harmonics in the voltage (relative):

50 - 60 Hz > 80 V AC1 - 20 th / ± 2% / 0.1%

21 - 50 th / ± 4% of the value ± 2% / 0.1%

Harmonics in the voltage (absolute):

50 - 60 Hz > 80 V AC1 - 20 th / ± 2% / 0.1%

21 - 50 th / ± 4% of the value ± 0.5% / 0.1%

Harmonics in the current (relative):

50 - 60 Hz > 80 V AC1 - 20 th / ± 2% / 0.1 %

21 - 50 th / ± 4% of the value ± 2% / 0.1 %

Harmonics in the current (absolute):

50 - 60 Hz > 80 V AC1 - 20 th / ± 2% of the value ± 0.4 A / 0.1 A

21 - 50 th / ± 4% of the value ± 0.4 A / 0.1 A

Total harmonic distortion (THD-F):

50 - 60 Hz > 80 V y > 20 A0.0 - 20% / 2% / 0.1%

20.1 - 100% / ± 6% of the value ± 1% / 0.1%

100.1 - 999.9 % / ± 10% of the value ± 1% / 0.1%

Max. clamp opening:55 mm / 2.2 in

Range selection:Auto

Overload indication:"OL = Overload

Memory:50,000 readings

Interface:USB

Software and data cable:included in the delivery. They can be used with

Win 2000, XP, ME

Display:graphic LCD display, 128 x 64 with backlight

Power supply:2x 1.5V AA batteries

Energy consumption:Approx. 10-mA

Dimensions:271 x 112 x 46 mm / 10.6 x 4.4 x 1.8 in

Weight:650 g / 1.4 lbs with batteries

Operating conditions:85% max. R.H. / -10 ... 50°C / 14 ... 122°F

Protection / Standards:CAT III 600 V / EN 61010-2-032

Dilivery Contents

1 x Current Clamp PCE-GPA 62

2 x Isolated measuring pins with 2 m / 6.6 ft of cable each

2 x Batteries

1 x Carrying case

1 x USB cable for a PC

1 x Software (in English)

1 x User's manual

1 x ISO Calibration Certificate
