Specifications
Measurement ranges:10 ... 95% relative humidity (RH) / 0 ... 60 degrees Celsius (°C only)
Resolution:1% RH / 1°C
Accuracy:± 2% RH / ±1°C
Visible distance:Display can be read from 50 m / 164 ft away
Sensor types:HC1000 (RH) / PT1000 (°C)
Response time T90:Approx. 4 seconds
Cable length: (between sensor and display)1 m
Display:100 mm / 3.9 in tall LED digits (alternates values)
Analog output:Two channels, 4 ... 20-mA
Power supply:110V ... 230V / 50 ... 60 Hz
Dimensions:Sensor = 50 x 70 x 20 mm / 2 x 2.8 x .8 in
Display: = 175 x 250 x 75 mm / 6.9 x 9.8 x 3 in
Ingress protection:IP 54 rating
Weight:1.3 kg / 2.9 lbs (with sensor and cable)
Dilivery Contents

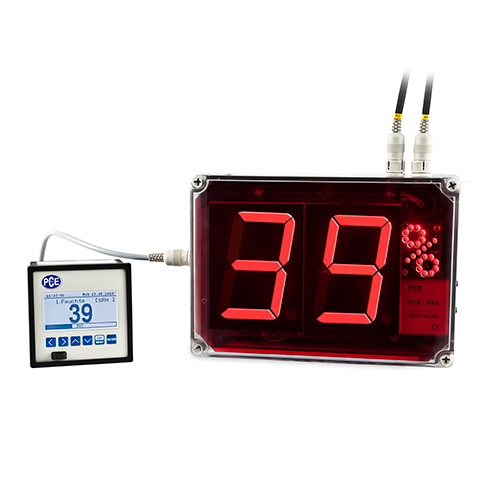

1 x PCE-G1A air humidity meter
1 x Sensor with 1 m / 3.3 ft connection cable
1 x Cable for analog output
1 x Direct connection cable to 110/220 VAC
1 x User manual
