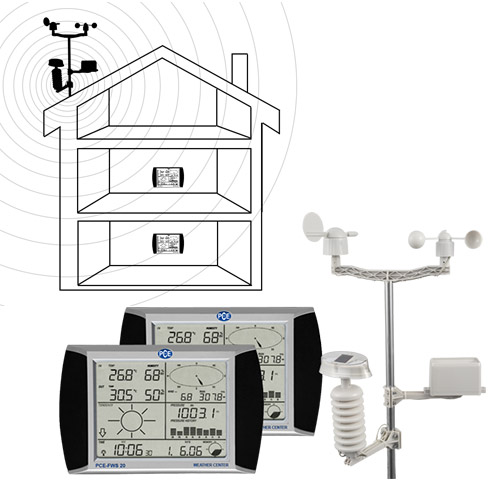

PCE FWS 20-1 Air Humidity Meter Station

Specification

Indoor

Measurement ranges: Operating temperature: 0 ... +60 °C (32 … +140 °F)

Humidity: 1 ... 99 %; Atmospheric pressure: 919 ... 1,080 hPa

Resolution: Air temperature: 0.1 °C

Humidity: 1 %

Atmospheric pressure: 0.1 / 1.5 hPa

Radio control data update: 48 seconds

Alarm duration: 120 seconds

Outdoor

Measurement range: Operating temperature: -40 ... +65 °C (-40 … +149 °F)

Humidity: 1 ... 99 %

Rain fall: 0 ... 9,999 mm (0 … 394 inches)

Wind speed: 0 ... 180 km/h (0 … 112 mph)

Indication of the wind direction

Resolution: Air temperature: 0.1 °C

Humidity: 1 %

Rainfall: 0.1mm (volume <1,000mm) / 1mm (volume >1,000mm)

Radio transmission data updated: 48 seconds

Radio transmission range: up to 100m in the open air (328 feet)

Port: USB

Dilivery Contents

2 x Main station with 2 touch screen displays (3 x 1.5v batteries)

1 x Temperature sensor with a support

1 x Solar unit (2 x 1.5v rechargeable batteries)

1 x Humidity sensor with a support

1 x Rainfall sensor with a support

1 x Air velocity sensor with a support

1 x Wind direction sensor with a support

1 x Vertical mast

1 x USB cable

1 x Analysis software (N.B. Windows operating systems only)

Display unit dimensions 230mm x 150mm

External Sensors dimensions 660mm x 540mm
