PCE EM 886 Environmental Tester (vkèm đo ánh sáng, nhiệt độ độ ẩm)

Specification

Sound

Measurement range: 35 ... 100 dB

Resolution: 0.1 dB

Frequency range: 30 Hz ... 10 kHz

Frequency weighting: C

Time weighting: Fast

Accuracy: ± 5 dB at 94 dB, 1 kHz sine wave

Microphone: Internal, electric condenser

Light

Measurement range: 4,000 ... 40,000 lux (40,000 lux range reading x 10)

Overrate display: Highest digit of "OL"

Accuracy: ± 5% measurement value + 10 digits

(calibrated to standard incandescent lamp at color temperature 2856k)

Repeatability: ± 2%

Temperature characteristic: ± 0.1% / °C (°F)

Sensor: Internal, silicon photodiode with filter

Humidity

Measurement range: 33 ... 99% relative humidity (RH)

Resolution: 1% RH

Accuracy: ± 3% measurement value + 5% RH

Temperature

Measurement range

Indoor: 0 ... 50°C

Type K: -20 ... 1300°C

Resolution

Indoor and Type K to 400°C : 0.1°C

Type K to 1300°C : 1°C

Accuracy: ± 3% measurement value ± 3°C

Electrical

AC / DC current (auto-ranging for uA and mA)

Measurement range: 400-uA / 4000-uA / 40-mA / 400-mA / 10 A

0.1-uA / 1-uA / 10-uA / 100-uA / 10-mA

Resolution: ± 1% measurement value ± 2 digits (up to 40-mA DC)

Accuracy:

± 1.2% value ± 2 digits (up to 400-mA DC / 40-mA AC)

± 1.5% value ± 2 digits (up to 400-mA AC)

± 2% value ± 5 digits (up to 10 A)

Resistance (auto-ranging)

Measurement range: 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ

Resolution: 0.1 Ω / 1 Ω / 10 Ω / 100 Ω / 10 kΩ / 1 MΩ

Accuracy

± 1.5% value ± 4 digits (up to 400 Ω)

± 1.5% value ± 2 digits (up to 400 kΩ)

± 2% value ± 2 digits (up to 4 MΩ)

± 2.5% value ± 2 digits (up to 40 MΩ)

Capacitance (auto-ranging)

Measurement range: 50 nF / 500 nF / 5 uF / 50 uF / 100 uF

Resolution: 10 pF / 0.1 nF / 1 nF / 10 nF / 0.1 uF

Accuracy

± 5% value ± 20 digits (up to 50 nF)

± 3% value ± 5 digits (up to 50 uF)

± 4% value ± 5 digits (up to 100 uF)

Frequency (auto-ranging)

Measurement range: 5 Hz / 50 Hz / 500 Hz / 5 kHz / 50 kHz / 500 kHz / 10 MHz

Resolution: 0.001 Hz / 0.01 Hz / 0.1 Hz / 1 Hz / 10 Hz / 100 Hz / 1 kHz

Accuracy:

± 1.2% value ± 3 digits (up to 500 kHz)

± 1.5% value ± 4 digits (up to 10 MHz)

General specifications

Display: LCD

Overrange indicator: "OL"

Measurement rate: 3 times per second, nominal

Operating conditions: 0 ... 40°C/ < 70% RH

Storage conditions: -10 ... 60°C / < 80% RH

Power supply: 1 x 9V battery

Meter dimensions: 170 x 78 x 48 mm

Weight: 335 g

Delivery contents

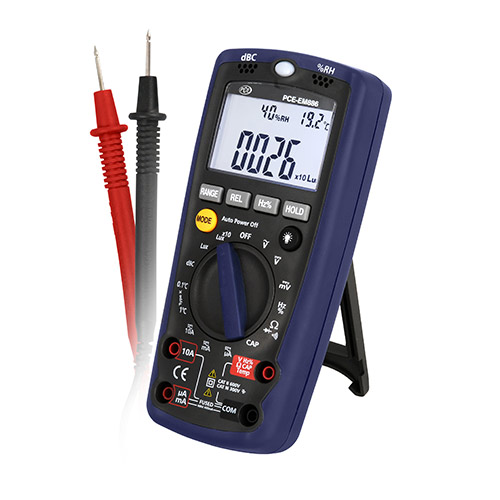

1 x PCE-EM 886 multifunction noise meter

1 x Temperature sensor with type K thermocouple

1 x Set of electrical test leads

1 x 9V battery

1 x User manual
