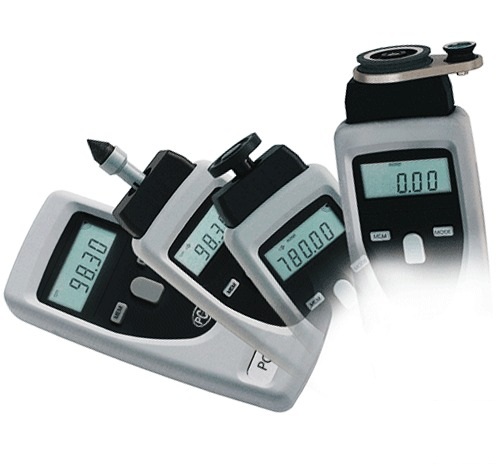

PCE DT 100 Handheld Tachometer (50~19999 RPM, ± 0.03%)

Specification

Optical measurement range:1 ... 99999 r.p.m.

Mechanic measurement range:0.1 ... 19999 r.p.m.

Accuracy:±0.02% (or ±1 ) of r.p.m.

Speed with:Ø 0.1 m accumulator

m/min.:0.10 ... 1999

ft/min.:0.40 ... 6550

in/min.:4.00 ... 78700

m/s:0.10 ... 33.30

ft/s:0.10 ... 109

Speed with:Ø 6" adapter

m/min.:0.10 ... 1524

ft/min.:0.40 ... 5000

in/min.:4.00 ... 60000

m/s:0.10 ... 25.40

ft/s:0.10 ... 83.33

Mesurement time:1 s or a period

Meaurement distance:600 mm / 23 in maximum

Measurement principle:Optical or mechanical

Memory:Max., min., average and last value memory

Power off:Automatically after 30 s

Power supply:2 x 1.5V AA batteries, or standard accumulators

Display: 5 digits LCD; 10 mm / .4 in height

Operating temperature:0 ... 50°C / 32 ... 122°F

Storage temperature:-20 ... 70 °C / -4 ... 158°F

Housing:ABS plastic

Weight:250 g / < 1 lb

Adapter dimensions:175 x 60 x 28 mm / 6.9 x 2.4 x 1.1 in

Norms:EC

Delivery contents

1 x Handheld tachometer PCE-DT 100

10 x Reflective strips

1 x Cover

1 x Tip measurement

1 x Hollow tip

1 x Wheel adapter (0.1 m / .04 in and 6 in)

1 x Special mechanical adapter for threads, fibers (glass fiber) and wire extension of wave

2 x 1.5V batteries AA

1 x Carrying case

1 x Factory calibration certificate

1 x User manual
