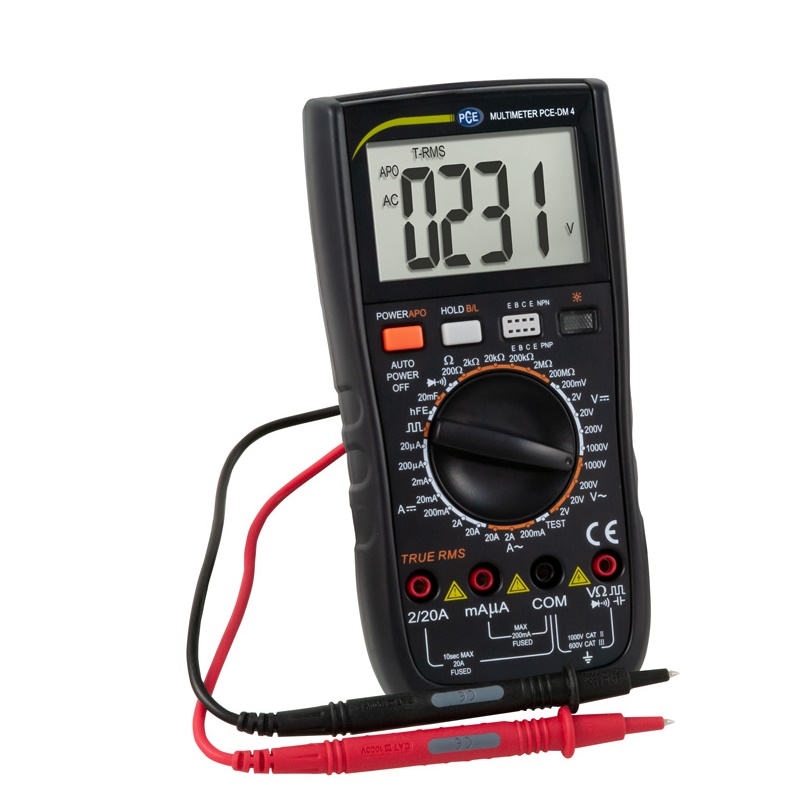

PCE DM 4 Digital Multimeter

Specifications:

DC

Measuring range: 200 mV; 2V; 20V; 200V; 1000V

Resolution: 100 µV; 1 mV; 10 mV; 100 mV; 1V

Accuracy: ± (0.5% +5 digits); ± (0.5% +3 digits); ± (0.5% +3 digits); ± (0.5% +3 digits); ± (1.0% +10 digits)

Input impedance: 10 MΩ

Surge protection: 1000V DC / AC RMS

AC

Measuring range: 2V; 20V; 200V; 1000V

Resolution: 1 mV; 10 mV; 100 mV; 1V

Accuracy: ± (0.8% +5 digits); ± (0.8% +5 digits); ± (0.8% +5 digits); ± (1.2% +10 digits)

Input impedance: 10 MΩ

Surge protection: 1000V DC / AC RMS

The accuracies refer to 10 ... 100% of the respective measuring ranges, one

Frequency of 40 ... 400 Hz with a sine wave (True RMS) and a crest factor

(Crest factor): CF < 3. With a crest factor CF > 2 the increases

1% accuracy.

Capacity

Measuring range: 6 nF; 60 nF; 600 nF; 6 µF; 60 µF; 600μF; 6 mF; 20 mF

Resolution: 1 pF; 10 pF; 100 pF; 1 nF; 10 nF; 100 nF; 1 µF; 10 µF

Accuracy: ± (5.0% +40 digits); ± (2.5% +20 digits); ± (2.5% +20 digits); ± (2.5% +20 digits); ± (2.5% +20 digits); ± (5.0% +10 digits); ± (5.0% +40 digits); ± (5.0% +40 digits)

Surge protection: 600V DC / AC RMS

The accuracies refer to 10 ... 100% of the respective measuring ranges

Response time for capacities> 1 mF approx. 8 seconds

The accuracy does not include the loading capacity

Transistor test

Measuring range: 0 ... 1000 hFE
Resolution: 1 hFE
Accuracy: -

For NPN and PNP transistors

Base current approx. 10 µA

Collector-emitter voltage approx. 3V

Direct current

Measuring range: 20 µA; 200 µA; 2 mA; 20 mA; 200 mA; 2 A; 20 A

Resolution: 0.01 µA; 0.1 µA; 1 µA; 10 µA; 100 µA; 1 mA; 10 mA

Accuracy: ± (1.2% +8 digits); ± (1.2% +8 digits); ± (1.2% +8 digits); ± (1.2% +8 digits); ± (1.2% +8 digits); ± (1.5% +10 digits); ± (2.0% +6 digits)

Voltage recording: 1.25 mV / µA; 0.125 mV / µA; 125 mV / mA; 3.75 mV / mA; 3.75 mV / mA; 37.5 mV / A; 37.5 mV / A

Fuse up to the measuring range 200-mA: 200-mA / 250V

Fuses from a measuring range of 2 A: 20 A / 250V

Alternating current

Measuring range: 200 -mA; 2 A; 20 A

Resolution: 100 µA; 1-mA; 10-mA

Accuracy: ± (1.5% +15 digits); ± (2.0% +5 digits); ± (3.0% +10 digits)

Voltage recording: 3.75 mV / mA; 37.5 mV / A; 37.5 mV / A

Fuse up to the measuring range 200-mA: 200-mA / 250V

Fuses from a measuring range of 2 A: 20 A / 250V

The accuracies refer to 10 ... 100% of the respective measuring ranges,

a frequency of 40 ... 400 Hz with a sine wave (True RMS) and one

Crest factor: CF < 3. With a crest factor CF > 2 the increases

1% accuracy.

Resistance

Measuring range: 200 Ω; 2 kΩ; 20 kΩ; 200 kΩ; 2 MΩ; 200 MΩ

Resolution: 0.1 Ω; 1 Ω; 10 Ω; 100 Ω; 1 kΩ; 100 kΩ

Accuracy: ± (0.8% +5 digits); ± (0.8% +3 digits); ± (0.8% +3 digits); ± (0.8% +3 digits); ± (0.8% +3 digits); ± (5% +30 digits)

Short circuit current: approx.0.4-mA; approx. 100 µA; approx. 10 µA; approx. 1 µA; approx. 0.2 µA; approx. 0.2 µA

Voltage with open circuit: approx. 1V

Surge protection: 600V DC / AC RMS

Diode test

Test current: Measuring range Approx.0.4-mA

Test voltage: Measuring range Approx.3.3V

Accuracy: Measuring range 5%

Surge protection: 600 V DC / AC RMS

Continuity test

Test current: Measuring range Approx.0.4-mA

Test voltage: Measuring range Approx.3.3V

Accuracy: Measuring range 5%

Surge protection: 600 V DC / AC RMS

Beep at 50 ± 20Ω

Function generation (square)

Tension: Approx.3.3V

Function generation: 50 Hz, 100 Hz, 200 Hz, 500Hz, 1 kHz, 2 kHz, 5 kHz, 10 kHz

Surge protection: 600V DC / AC RMS

Further specification

Display: LCD display

Largest display: 1999 (3 1/2)

Measuring rate:Approx. 3 measurements per second

Overrange: "OL" display

Operating conditions: 0 ... 40°C / 32 ... 104°F, < 75% RH non-condensing

Power supply: 1 x 9V block battery

Dimensions: 190 x 88.5 x 27.5 mm

Weight:Approx. 320 g / < 1 lb (with battery)

Delivery Scope

1 x Digital multimeter PCE-DM 4

1 x Pair of test leads

1 x 9V block battery

1 x Instruction manual
