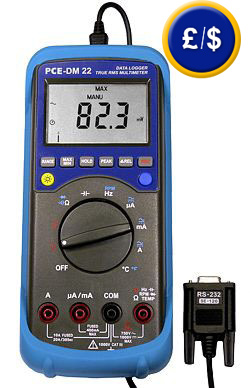

PCE DM 22 Multimeter

Technical specifications

Measurement ranges

DCV: 400 mV; 4/40/400/1000 V

ACV: 400 mV; 4/40/400/750 V

DCA: 400/4000 µA; 40/400 mA; 10 A

ACA: 400/4000 µA; 40/400 mA; 10 A

OHM: 400 Ω; 4/40/400 kΩ; 40 MΩ

Cap.: 4/40/400 nF; 4/ 40/400 µF; 4/40 mF

Freq.: 4/40/400 kHz; 4/40 MHz

RPM: 4/40 kRPM; 4/40/400 MRPM

Temp.: -50 °C to 1000 °C

Resolution

DCV: 0.1 mV; 0.001/0.01/0.1/1 V

ACV: 0.1 mV; 0.001/0.01/0.1/1 V

DCA: 0.1/1 µA; 0.01/0.1 mA; 0.01 A

ACA: 0.1/1 µA; 0.01/0.1 mA; 0.01 A

OHM: 0.1/1/10/100 Ω; 1/10 kΩ

Cap.: 1/10/100 pF; 1/ 10/100 nF; 1/10 µF

Frec.: 1/10/100 Hz; 1/10 kHz

RPM: 0.01/0.1/1/10/100 kRPM

Temp.: 1 °C

Accuracy

DCV: ±0.3% of reading + 2 dgt (up to 400 V); ±0.5% + 3 dgt (above)

ACV: ±0.5% of reading ±0.8% + 5 dgt (above)

DCA: ±0.8% of reading ±1.2% + 5 dgt (above)

OHM: ±0.6% of reading ±1% + 3 dgt (above)

Cap.: ±1.9% of reading + 1 dgt

RPM: ±0.5% of reading + 1 dgt

Temp.: ±1.0% of reading + 2 °C

Rate of measurement2 per second

Warningyes, if it is below x Ω

Diode testtest: good or defective/low conductivity or none

Memoryinternal up to 32,000 readings

InterfaceRS-232

Software and cableboth included, compatible with Windows 95, 98, 2000 and XP

Displaybacklit LCD with 3¾ positions

Power9 V battery

Auto shut-offafter 30 min. of inactivity (can be disabled)

Dimensions198 x 86 x 38 mm

Weight430 g

Operating conditions85% max. relative humidity/0 to 50°C

Ingress protection/StandardIP 65/IEC 1010 - 1, 600 V CAT III

Delivery scope

1 x Multimeter PCE-DM 22

1 x test cables

1 x type-K hot-wire temperature sensor

1 x battery

1 x holster

1 x RS-232 cable

1 x software

1 x user manual
