PCE DLT 10 Damp Test Stand

Specification

Test method:Based on AMK-MB-005 (04/2015)

Temperature control range:automatic 50 ... 52 °C

Heating capacity:3000 W

Measurement display:Colour Touch LCD

Measurement memory:1.5 GB (> 1 million measured values)

Storage rate:max. 10 Hz (adjustable)

Interface:

USB (for USB stick)

Ethernet (optionally selectable)

Temperature sensor:PT100 class A 4 conductors

Power supply:230 V AC / 50 Hz

Dimensions:1130 x 720 x 690 mm

Weight:ca. 36 kg

Delivery contents

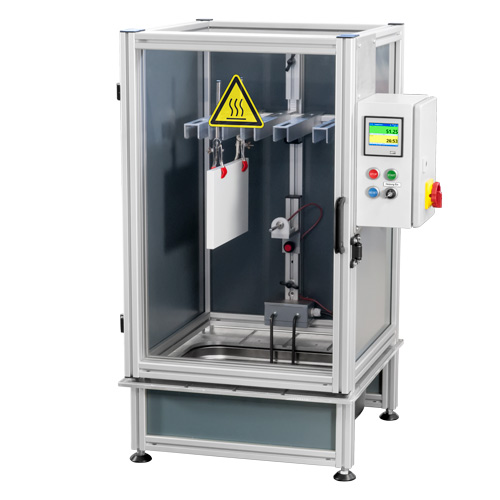

1 x evaporation cabinet PCE-DLT 10 including display unit, heating element and temperature sensor

4 x mounting rails

4 x gripping clamps

1 x collecting basin

1 x instruction manual
