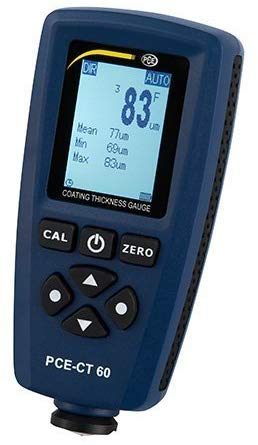

PCE CT 60 Coating Thickness Meter (Type F / FN)

Technical Specifications

Material: Steel / iron / Non-ferrous material

Functional principle: Magnetic induction / Eddy current

Measuring range

Steel / iron: 0 ... 1250 µm

Non-ferrous material: 0 ... 1250 µm

Accuracy

Steel / iron: 0 ... 850 µm

Non-ferrous material: 0 ... 850 µm

Smallest measured surfaces

Steel / iron: Ø 7 mm

Non-ferrous material: Ø 5 mm

Smallest curvature radius

Steel / iron: 1.5 mm

Non-ferrous material: 3 mm

Basic film thickness

Steel / iron: 0.5 mm

Non-ferrous material: 0.3 mm

Interface: USB

Operating conditions: 0° C ... + 40° C

Power: 2 x 1.5 V AAA battery

Dimensions: 110 x 50 x 23x mm

Weight: 100 g (with battery)

Delivery Scope:

1 x PCE-CT 60 Automotive Tester

1 x integrated F-/N probe

1 x carrying case

2 x 1.5 V AAA battery

1 x calibration standard

1 x User's manual
